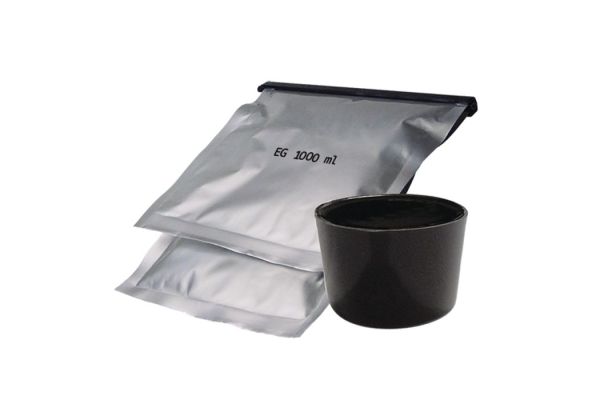

EG 1000

Two-component PUR cast resin
universal
Art. no.
124992
More Information
Product family EG
Product family EG
Main description Two-component PUR cast resin
Sub description universal
Family description Cast resin EG is suitable for the following types of cables: Low voltage polymericinsulated and mass-impregnated paper cables up to 1 kV, polymeric-insulated and mass-impregnated paper telecommunication and signal cables and medium voltage cables (as mechanical protection and protection against moisture).
Notes Other sizes available on request., REACH Regulation on the restriction of diisocyanates (for EU countries only)The European Commission amended Annex XVII of the REACH Regulation (EC) (new number 74) with Regulation (EU) 2020/1149, which entered into force on 24 August 2020. In accordance with the new REACH Regulation, appropriate training will be required prior to the industrial or professional use of diisocyanates, adhesives and sealants as of 24 August 2023. All information regarding training materials and training courses is available on the ISOPA/ALIPA website https://www.safeusediisocyanates.eu/
Characteristics Favourable flow properties, High hydrolysis resistance, Stabilized against UV rays, Halogen-free, Resistant to alkaline earth elements, Not harmful to the environment, Flexibility ensures mechanical stress absorption, No fracturing under electrical stress, Excellent adhesion to all cable materials, Low hardening temperature, No fracturing under mechanical tension
More Information
Test standards DIN VDE 0278-631-1
Content 1000 ml
Flash point of cast resin component (open cup) > 200 °C
Flash point of reactant (open cup) > 200 °C
Processing time (pot life) 300 ml mixture 5 °C 40 minutes
Processing time (pot life) 300 ml mixture 23 °C 23 minutes
Processing time (pot life) 300 ml mixture 35 °C 15 minutes
Reaction temperature max 80 °C
Total volume shrinkage during curing ​​ 4 %
Impact strength > 10 kJ/m²
Water absorption in warm water (42 d at 50 °C) 350 mg
Electrolytic corrosion A 1
1 minute test voltage at 23 °C > 20 kV
1 minute test voltage at 80 °C > 20 kV
Dielectric dissipation factor at 23 °C and 1 kHz 0,05
Dielectric dissipation factor at 23 °C and 50 Hz 0,08
Dielectric constant at 23 °C and 1 kHz 5,3
Dielectric constant at 23 °C and 50 Hz 5,1
Tracking resistance KA 3c
Hardness 55 Shore D
Density 1,1 g/cm³
Density cured casting compound (associated standard) ISO 1183-1
Operating temperature range min -40 °C
Operating temperature range max 105 °C
More Information
Delivery scope Cast resin 1000ml
Shelf life 40 Month
Shelf life description In aluminium bag
Storage temperatur min 15 °C
Storage temperatur max 35 °C
Country of origin Germany
Customs tariff number 39095090
EAN/GTIN 4010311008462
Alternate quantity 1 1 1
Alternative unit of measure Piece Case Pal. OW
Base quantity 1 1 144
Base unit of measure Piece Piece Piece
Lenght (mm) 343 343 1200
Width (mm) 187 187 800
Height (mm) 47 47 770
Net weight (kg) 1,221 1,221 175,824
Gross weight (kg) 1,221 1,221 194,024
