Product family | KAV |
---|---|

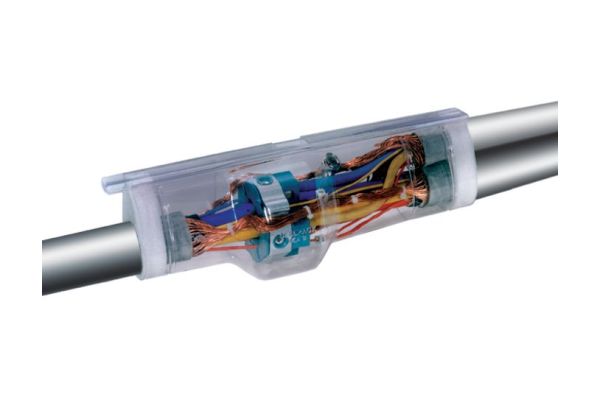

Main description | Cast resin branch joint |
Sub description | for polymeric cables |
Family description | Universally suitable for branching cables and conductors insulated with PVC, PE and XLPE (e.g. N(A)YY, GKN). With hydrolysis resistance PUR cast resin EG. Suitable for cable branch clamps / ring clamps and compression connectors on copper and aluminium conductors. |
Notes | Additional earthing set available on request., The European Commission amended Annex XVII of the REACH Regulation (EC) (new number 74) with Regulation (EU) 2020/1149, which entered into force on 24 August 2020. In accordance with the new REACH Regulation, appropriate training will be required prior to the industrial or professional use of diisocyanates, adhesives and sealants as of 24 August 2023. All information regarding training materials and training courses is available on the ISOPA/ALIPA website https://www.safeusediisocyanates.eu/ |
Optional accessory | Compression connectors (see Connecting technology), Compact ring clamp (see Connecting technology), Cleaner UNIVERSAL CLEANER 121 (see Accessories), Split bolt clamp FK (see Connecting technology), Screw branch clamp AK (see Connecting technology) |
Characteristics | Compact dimensions, High-quality transparent shockproof plastic shell, Resistant to chemical agents, Stabilized against UV rays, Resistant to alkaline earth elements, Longitudinally and transversely watertight, High electrical insulating values, High mechanical strength, Ready for immediate operation, Quick, safe and easy assembly, Large filler aperture to facilitate casting |
Applications | Indoor, Outdoor, Underground, Water, Installation ducts |
Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
---|---|
Test standards | EN 50393 |
Length L | 270 mm |
Heigth H | 78 mm |
Diameter D | 58 mm |
Diameter cable Main cable max | 33 mm |
Diameter cable Branch cable max | 20 mm |
Nominal cross section Main cable Polymeric cable unarmoured per conductor 4x min | 25 mm² |
Nominal cross section Main cable Polymeric cable unarmoured per conductor 4x max | 25 mm² |
Nominal cross section Branch cable Polymeric cable unarmoured per conductor 4x min | 10 mm² |
Nominal cross section Branch cable Polymeric cable unarmoured per conductor 4x max | 10 mm² |
Nominal cross section Main cable Polymeric cable armoured per conductor 4x | 6 mm² |
Nominal cross section Branch cable Polymeric cable armoured per conductor 4x | 4 mm² |
Delivery scope | Sealing gaskets, Hydrolysis resistance PUR cast resin EG, Packed in practical and easy-to-use two-chamber bags, Transparent plastic shell with locking bar, Sealing tape, Protective gloves, Assembly instructions | ||
---|---|---|---|
Shelf life | 40 Month | ||
Country of origin | Germany | ||
Customs tariff number | 39095090 | ||
EAN/GTIN | 4010311080789 | ||
Packaging type | Piece | Case | Pal. EU |
Content quantity | 1 | 1 | 120 |
Unit of measure | Piece | Piece | Piece |
Lenght (mm) | 306 | 306 | 1200 |
Width (mm) | 212 | 212 | 800 |
Height (mm) | 95 | 95 | 1130 |
Net weight (kg) | 1,03 | 1,03 | 123,6 |
Gross weight (kg) | 1,03 | 1,03 | 152,6 |
