Product family | H |
---|---|
Main description | Cast resin branch joint |
Sub description | for polymeric cables |
Family description | Universally suitable for branching cables and conductors insulated with PVC, PE and XLPE (e.g. N(A)YY, TT..). Suitable for assembly of individual one-core branch clamps according to type (split bolt clamps for H 1 and H 2) or branch clamps (H 5…and H 6) and compression or screw connectors. |
Characteristics | Compact dimensions, Splice area visible before casting, High-quality transparent shockproof plastic shell, Resistant to chemical agents, Stabilized against UV rays, Resistant to alkaline earth elements, Longitudinally and transversely watertight, High electrical insulating values, High mechanical strength, Ready for immediate operation, Quick, safe and easy assembly, Large filler aperture to facilitate casting, Can be used as double-branch joint (H 1 and H 2) |
Applications | Indoor, Outdoor, Underground, Water, Installation ducts |
Optional accessory | For size 1…2 screw branch clamp AK (see Connecting technology), For size 1…2 split bolt clamp FK (see Connecting technology), For size 5…7 branch clamp HE 1/70/150 (see Connecting technology), Connectors (see Connecting technology), Cleaner UNIVERSAL CLEANER 121 (see Accessories) |
Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
---|---|
Test standards | EN 50393 |
Length L | 290 mm |
Length L1 | 180 mm |
Heigth H | 185 mm |
Diameter D | 135 mm |
Diameter cable Main cable max | 52 mm |
Diameter cable Branch cable max | 36 mm |
Nominal cross section Main cable Polymeric cable unarmoured per conductor 4x min | 95 mm² |
Nominal cross section Main cable Polymeric cable unarmoured per conductor 4x max | 150 mm² |
Nominal cross section Branch cable Polymeric cable unarmoured per conductor 4x min | 16 mm² |
Nominal cross section Branch cable Polymeric cable unarmoured per conductor 4x max | 70 mm² |
Delivery scope | Hydrolysis resistance PUR type EG cast resin, Packed in practical and easy-to-use two-chamber bags, Transparent plastic shell, Sealing gaskets, Centring elements, Protective gloves, Assembly instructions | ||
---|---|---|---|
Shelf life | 40 Month | ||
Country of origin | Germany | ||
Customs tariff number | 39095090 | ||
EAN-UPC | 4010311003399 | ||
Alternate quantity | 1 | 1 | 1 |
Alternative unit of measure | Piece | Case | Pal. EU |
Base quantity | 1 | 1 | 40 |
Base unit of measure | Piece | Piece | Piece |
Lenght | 354 | 354 | 1200 |
Width | 228 | 228 | 800 |
Height | 200 | 200 | 1130 |
Dimension unit | Millimetres | Millimetres | Millimetres |
Volume | 16,142 | 16,142 | 1084,8 |
Volume unit | Cubic decimetres | Cubic decimetres | Cubic decimetres |
Net weight | 3,263 | 3,263 | 130,52 |
Gross weight | 3,263 | 3,263 | 159,52 |
Weight unit | Kilogram | Kilogram | Kilogram |
- REACH conformity declaration (de)
- REACH conformity declaration (en)
- REACH conformity declaration (sp)
- REACH conformity declaration (fr)
- REACH conformity declaration (it)
- REACH conformity declaration (nl)
- REACH conformity declaration (pl)
- RoHS conformity declaration (de)
- RoHS conformity declaration (en)
- RoHS conformity declaration (sp)
- RoHS conformity declaration (fr)
- RoHS conformity declaration (it)
- RoHS conformity declaration (nl)
- RoHS conformity declaration (pl)
- Conflict minerals declaration (de)
- Conflict minerals declaration (en)
- Conflict minerals declaration (sp)
- Conflict minerals declaration (fr)
- Conflict minerals declaration (it)
- Conflict minerals declaration (nl)
- Conflict minerals declaration (pl)
- Technical data sheet (de)
- Technical data sheet (en)
- Technical data sheet (sp)
- Technical data sheet (fr)
- Technical data sheet (it)
- Technical data sheet (nl)
- Technical data sheet (pl)
- Product drawing
- Image movie (de)
- Image movie (en)
- Image movie (fr)
- Safety-Data-Sheet (DE-DE)
- Safety-Data-Sheet (DE-DE)
- Safety-Data-Sheet (NL-NL)
- Safety-Data-Sheet (NL-NL)
- Safety-Data-Sheet (DE-DE)
- Safety-Data-Sheet (CH-IT)
- Safety-Data-Sheet (CH-DE)
- Safety-Data-Sheet (FR-FR)
- Safety-Data-Sheet (CH-FR)
- Safety-Data-Sheet (IT-IT)
- Safety-Data-Sheet (PL-PL)
- Safety-Data-Sheet (NL-NL)
- Safety-Data-Sheet (ES-ES)
- Safety-Data-Sheet (NL-NL)
- Safety-Data-Sheet (CH-DE)
- Safety-Data-Sheet (CH-FR)
- Safety-Data-Sheet (DE-DE)
- Safety-Data-Sheet (DE-DE)
- Assembly movie long
- Safety-Data-Sheet (CH-DE)
- Safety-Data-Sheet (CH-DE)
- Safety-Data-Sheet (EN-EN)
- Safety-Data-Sheet (EN-EN)
- Safety-Data-Sheet (FR-FR)
- Safety-Data-Sheet (CH-FR)
- Safety-Data-Sheet (FR-FR)
- Safety-Data-Sheet (IT-IT)
- Safety-Data-Sheet (CH-IT)
- Safety-Data-Sheet (CH-FR)
- Safety-Data-Sheet (IT-IT)
- Safety-Data-Sheet (CH-IT)
- Safety-Data-Sheet (NL-NL)
- Safety-Data-Sheet (PL-PL)
- Safety-Data-Sheet (PL-PL)
- Safety-Data-Sheet (ES-ES)
- Safety-Data-Sheet (ES-ES)
- Safety-Data-Sheet (EN-EN)

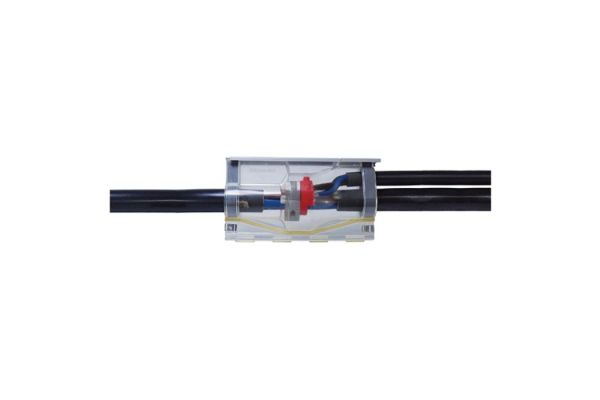

- Family image
