H 5

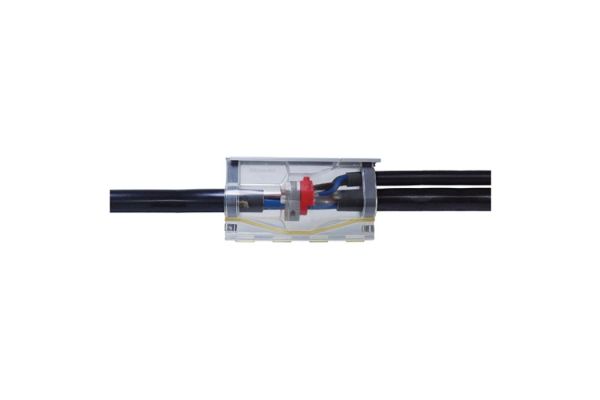

Cast resin branch joint
for polymeric cables
Art. no.
124787
More Information
Product family H
Main description Cast resin branch joint
Sub description for polymeric cables
Family description Universally suitable for branching cables and conductors insulated with PVC, PE and XLPE (e.g. N(A)YY, TT..). Suitable for assembly of individual one-core branch clamps according to type (split bolt clamps for H 1 and H 2) or branch clamps (H 5…and H 6) and compression or screw connectors.
Characteristics Compact dimensions, Splice area visible before casting, High-quality transparent shockproof plastic shell, Resistant to chemical agents, Stabilized against UV rays, Resistant to alkaline earth elements, Longitudinally and transversely watertight, High electrical insulating values, High mechanical strength, Ready for immediate operation, Quick, safe and easy assembly, Large filler aperture to facilitate casting, Can be used as double-branch joint (H 1 and H 2)
Applications Indoor, Outdoor, Underground, Water, Installation ducts
Optional accessory For size 1…2 screw branch clamp AK (see Connecting technology), For size 1…2 split bolt clamp FK (see Connecting technology), For size 5…7 branch clamp HE 1/70/150 (see Connecting technology), Connectors (see Connecting technology), Cleaner UNIVERSAL CLEANER 121 (see Accessories)
More Information
Voltage levels U0/U (Um) 0,6/1 (1,2) kV
Test standards EN 50393
Length L 300 mm
Length L1 246 mm
Heigth H 170 mm
Diameter D 115 mm
Diameter cable Main cable max 50 mm
Diameter cable Branch cable max 32 mm
Nominal cross section Main cable Polymeric cable unarmoured per conductor 4x min 95 mm²
Nominal cross section Main cable Polymeric cable unarmoured per conductor 4x max 150 mm²
Nominal cross section Branch cable Polymeric cable unarmoured per conductor 4x min 16 mm²
Nominal cross section Branch cable Polymeric cable unarmoured per conductor 4x max 50 mm²
More Information
Delivery scope Hydrolysis resistance PUR type EG cast resin, Packed in practical and easy-to-use two-chamber bags, Transparent plastic shell, Sealing gaskets, Steel clamps, Protective gloves, Assembly instructions
Shelf life 40 Month
Country of origin Germany
Customs tariff number 39095090
EAN-UPC 4010311003382
Alternate quantity 1 1 1
Alternative unit of measure Piece Case Pal. EU
Base quantity 1 1 50
Base unit of measure Piece Piece Piece
Lenght 369 369 1200
Width 228 228 800
Height 177 177 1130
Dimension unit Millimetres Millimetres Millimetres
Volume 14,891 14,891 1084,8
Volume unit Cubic decimetres Cubic decimetres Cubic decimetres
Net weight 2,338 2,338 116,9
Gross weight 2,338 2,338 145,9
Weight unit Kilogram Kilogram Kilogram
