MZ 1 EG

Cast resin straight-through joint
for control cables and signal cables
Art. no.
124510
Inquiry
Add to Wish List

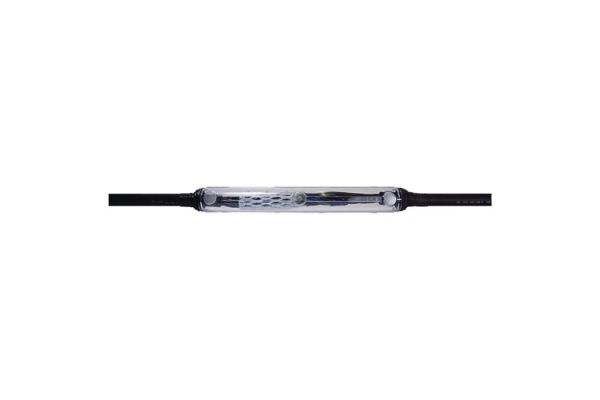

main product photo
More Information
Product family MZ…EG
Main description Cast resin straight-through joint
Sub description for control cables and signal cables
Family description Universally suitable for connecting control cables and signal cables or as a cable sheath repair protection joint. Suitable for compression connectors.
Characteristics Compact dimensions, Splice area visible before casting, High-quality transparent shockproof plastic shell, Resistant to chemical agents, Stabilized against UV rays, Resistant to alkaline earth elements, Longitudinally and transversely watertight, High electrical insulating values, High mechanical strength, Ready for immediate operation, Quick, safe and easy assembly, Large filler aperture to facilitate casting
Applications Indoor, Outdoor, Underground, Water, Installation ducts
Optional accessory Compression connectors (see Connecting technology), Cleaner UNIVERSAL CLEANER 121 (see Accessories), Shield continuity wire SVL (see Accessories)
More Information
Voltage levels U0/U (Um) 0,6/1 (1,2) kV
Test standards EN 50393
Length L 400 mm
Heigth H 57 mm
Diameter D 33 mm
Diameter cable max 30 mm
Control and signal cable 1,5 mm² Number of conductors 30 Pieces
Control and signal cable 2,5 mm² Number of conductors 20 Pieces
Control and signal cable 0,4 mm Number of wire pairs min 30 Pieces
Control and signal cable 0,4 mm Number of wire pairs max 60 Pieces
Control and signal cable 0,6 mm Number of wire pairs min 20 Pieces
Control and signal cable 0,6 mm Number of wire pairs max 50 Pieces
Control and signal cable 0,8 mm Number of wire pairs min 20 Pieces
Control and signal cable 0,8 mm Number of wire pairs max 40 Pieces
More Information
Delivery scope Fill and air-release funnel, Hydrolysis resistance PUR type EG cast resin, Packed in practical and easy-to-use two-chamber bags, Transparent plastic shell, PVC insulation tape, Protective gloves, Spacer mesh, Assembly instructions
Shelf life 40 Month
Country of origin Germany
Customs tariff number 39095090
EAN-UPC 4010311002767
Alternate quantity 1 1 1
Alternative unit of measure Piece Case Pal. OW
Base quantity 1 1 70
Base unit of measure Piece Piece Piece
Lenght 422 422 1200
Width 235 235 800
Height 87 87 1130
Dimension unit Millimetres Millimetres Millimetres
Volume 8,628 8,628 1084,8
Volume unit Cubic decimetres Cubic decimetres Cubic decimetres
Net weight 0,925 0,925 64,75
Gross weight 0,925 0,925 82,95
Weight unit Kilogram Kilogram Kilogram
