M5 B-MS6
3-core straight-through joint
for armoured 3-core polymeric cables up to 7.2 kV
Art. no.
124360
| Product family | M...MS6-UG |
|---|---|
| Main description | 3-core straight-through joint |
| Sub description | for armoured 3-core polymeric cables up to 7.2 kV |
| Family description | Straight-through joints M…MS6 are suitable for armoured 3-core polymericinsulated cables (PVC, PE, XLPE, EPR) without an outer semi-conductive layer. UG cast resin ensure flame protection (e.g. for mining). |
| Notes | The European Commission amended Annex XVII of the REACH Regulation (EC) (new number 74) with Regulation (EU) 2020/1149, which entered into force on 24 August 2020. In accordance with the new REACH Regulation, appropriate training will be required prior to the industrial or professional use of diisocyanates, adhesives and sealants as of 24 August 2023. All information regarding training materials and training courses is available on the ISOPA/ALIPA website https://www.safeusediisocyanates.eu/ |
| Optional accessory | Connectors (see Connecting technology) |
| Characteristics | Resistant to chemical agents, Longitudinally and transversely watertight, High mechanical strength, Quick, safe and easy assembly |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts |
| Voltage levels | U0/U (Um) 3,6/6 (7,2) kV - 3,8/6,6 (7,2) kV |
|---|---|
| Length L1 | 550 mm |
| Length L2 | 503 mm |
| Diameter D1 | 40 mm |
| Diameter D2 | 62 mm |
| Diameter D3 | 110 mm |
| Nominal cross section Polymeric cable armoured with concentric conductor min | 70 mm² |
| Nominal cross section Polymeric cable armoured with concentric conductor max | 95 mm² |
| Nominal cross section Polymeric cable armoured min | 95 mm² |
| Nominal cross section Polymeric cable armoured max | 120 mm² |
| Diameter cable min | 42 mm |
| Diameter cable max | 65 mm |
| Delivery scope | Spacer sleeve, Hydrolysis resistance PUR type UG cast resin, Packed in practical and easy-to-use two-chamber bags, Transparent plastic shell, Copper braid tube, Fill and air-release funnel, PVC insulation tape, Protective gloves, Assembly instructions | ||
|---|---|---|---|
| Shelf life | 24 Month | ||
| Country of origin | Germany | ||
| Customs tariff number | 39095090 | ||
| EAN/GTIN | 4010311015248 | ||
| Packaging type | Piece | Carton | Pal. OW |
| Content quantity | 1 | 1 | 24 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 568 | 568 | 1200 |
| Width (mm) | 353 | 353 | 800 |
| Height (mm) | 150 | 150 | 1130 |
| Net weight (kg) | 6,393 | 6,393 | 153,432 |
| Gross weight (kg) | 6,393 | 6,393 | 171,632 |
- REACH conformity declaration (de)
- REACH conformity declaration (en)
- REACH conformity declaration (sp)
- REACH conformity declaration (fr)
- REACH conformity declaration (it)
- REACH conformity declaration (nl)
- REACH conformity declaration (pl)
- RoHS conformity declaration (de)
- RoHS conformity declaration (en)
- RoHS conformity declaration (sp)
- RoHS conformity declaration (fr)
- RoHS conformity declaration (it)
- RoHS conformity declaration (nl)
- RoHS conformity declaration (pl)
- Conflict minerals declaration (de)
- Conflict minerals declaration (en)
- Conflict minerals declaration (sp)
- Conflict minerals declaration (fr)
- Conflict minerals declaration (it)
- Conflict minerals declaration (nl)
- Conflict minerals declaration (pl)
- Technical data sheet (de)
- Technical data sheet (en)
- Technical data sheet (sp)
- Technical data sheet (fr)
- Technical data sheet (it)
- Technical data sheet (nl)
- Technical data sheet (pl)
- Image movie (de)
- Image movie (en)
- Image movie (fr)
- POP conformity declaration (de)
- POP conformity declaration (en)
- Safety-Data-Sheet Comp.B (CH-DE)
- Safety-Data-Sheet Comp.A (NL-NL)
- POP-Declaration (-)
- Conflict-Minerals-Declaration (-)
- REACH-Declaration (-)
- ROHS-Declaration (-)
- Safety-Data-Sheet Comp.B (IT-IT)
- Safety-Data-Sheet Comp.B (CH-IT)
- Safety-Data-Sheet Comp.A (CH-FR)
- Safety-Data-Sheet Comp.B (PL-PL)
- Safety-Data-Sheet Comp.B (FR-FR)
- Safety-Data-Sheet Comp.A (NL-NL)
- Safety-Data-Sheet Comp.A (FR-FR)
- Safety-Data-Sheet Comp.A (CH-FR)
- Safety-Data-Sheet Comp.A (CH-DE)
- Safety-Data-Sheet Comp.A (IT-IT)
- Safety-Data-Sheet Comp.A (EN-EN)
- Safety-Data-Sheet Comp.B (EN-EN)
- Safety-Data-Sheet Comp.B (CH-FR)
- Safety-Data-Sheet Comp.B (PL-PL)
- Safety-Data-Sheet Comp.B (FR-FR)
- Safety-Data-Sheet Comp.B (NL-NL)
- Safety-Data-Sheet Comp.B (CH-IT)
- Safety-Data-Sheet Comp.B (EN-EN)
- Safety-Data-Sheet Comp.B (ES-ES)
- Safety-Data-Sheet Comp.B (IT-IT)
- Safety-Data-Sheet Comp.B (CH-DE)
- Safety-Data-Sheet Comp.B (DE-DE)
- Safety-Data-Sheet Comp.A (PL-PL)
- Safety-Data-Sheet Comp.A (ES-ES)
- Safety-Data-Sheet Comp.A (CH-IT)
- Safety-Data-Sheet Comp.A (PL-PL)
- Safety-Data-Sheet Comp.A (DE-DE)
- Safety-Data-Sheet Comp.A (EN-EN)
- Safety-Data-Sheet Comp.A (IT-IT)
- Safety-Data-Sheet Comp.A (CH-DE)
- Safety-Data-Sheet Comp.A (FR-FR)
- Safety-Data-Sheet Comp.B (CH-FR)
- Safety-Data-Sheet Comp.B (DE-DE)
- Safety-Data-Sheet Comp.A (DE-DE)
- Safety-Data-Sheet Comp.B (ES-ES)
- Safety-Data-Sheet Comp.A (ES-ES)
- Safety-Data-Sheet Comp.A (CH-IT)
- Safety-Data-Sheet Comp.B (NL-NL)

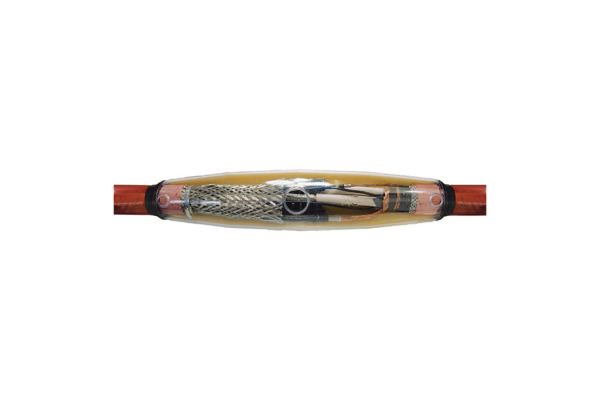

- Family image
