M4 B-MS6
3-core straight-through joint
for mining industry, gas stations, refineries
Art. no.
124359
| Product family | M...B...MS6 |
|---|---|
| Main description | 3-core straight-through joint |
| Sub description | for mining industry, gas stations, refineries |
| Family description | Straight-through joints M…MS6 are suitable for armoured 3-core polymeric insulated cables (PVC, PE, XLPE, EPR) without an outer semi-conductive layer. They allow the connection of cables with different cross sections and conductor materials even with different cable design. They do not contain any substances which inhibit paint wetting and are suitable for use in the automotive industry. Suitable for compression connectors. |
| Characteristics | Resistant to chemical agents, Longitudinally and transversely watertight, High mechanical strength, Quick, safe and easy assembly |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts |
| Optional accessory | Connectors (see Connecting technology) |
| Voltage levels | U0/U (Um) 3,6/6 (7,2) kV - 3,8/6,6 (7,2) kV |
|---|---|
| Length L1 | 432 mm |
| Length L2 | 384 mm |
| Diameter D1 | 29 mm |
| Diameter D2 | 52 mm |
| Diameter D3 | 90 mm |
| Nominal cross section Polymeric cable armoured with concentric conductor min | 25 mm² |
| Nominal cross section Polymeric cable armoured with concentric conductor max | 50 mm² |
| Nominal cross section Polymeric cable armoured min | 25 mm² |
| Nominal cross section Polymeric cable armoured max | 70 mm² |
| Diameter cable min | 29 mm |
| Diameter cable max | 55 mm |
| Delivery scope | Spacer sleeve, Hydrolysis resistance PUR type UG cast resin, Packed in practical and easy-to-use two-chamber bags, Transparent plastic shell, Copper braid tube, Fill and air-release funnel, PVC insulation tape, Protective gloves, Assembly instructions | ||
|---|---|---|---|
| Shelf life | 24 Month | ||
| Country of origin | Germany | ||
| Customs tariff number | 39095090 | ||
| EAN-UPC | 4010311015231 | ||
| Alternate quantity | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Carton | Pal. EU |
| Base quantity | 1 | 1 | 30 |
| Base unit of measure | Piece | Piece | Piece |
| Lenght | 488 | 488 | 1200 |
| Width | 248 | 248 | 800 |
| Height | 195 | 195 | 1130 |
| Dimension unit | Millimetres | Millimetres | Millimetres |
| Volume | 23,6 | 23,6 | 1084,8 |
| Volume unit | Cubic decimetres | Cubic decimetres | Cubic decimetres |
| Net weight | 3,597 | 3,597 | 107,91 |
| Gross weight | 3,597 | 3,597 | 136,91 |
| Weight unit | Kilogram | Kilogram | Kilogram |
- REACH conformity declaration (de)
- REACH conformity declaration (en)
- REACH conformity declaration (sp)
- REACH conformity declaration (fr)
- REACH conformity declaration (it)
- REACH conformity declaration (nl)
- REACH conformity declaration (pl)
- RoHS conformity declaration (de)
- RoHS conformity declaration (en)
- RoHS conformity declaration (sp)
- RoHS conformity declaration (fr)
- RoHS conformity declaration (it)
- RoHS conformity declaration (nl)
- RoHS conformity declaration (pl)
- Conflict minerals declaration (de)
- Conflict minerals declaration (en)
- Conflict minerals declaration (sp)
- Conflict minerals declaration (fr)
- Conflict minerals declaration (it)
- Conflict minerals declaration (nl)
- Conflict minerals declaration (pl)
- Technical data sheet (de)
- Technical data sheet (en)
- Technical data sheet (sp)
- Technical data sheet (fr)
- Technical data sheet (it)
- Technical data sheet (nl)
- Technical data sheet (pl)
- Image movie (de)
- Image movie (en)
- Image movie (fr)
- Safety-Data-Sheet (PL-PL)
- Safety-Data-Sheet (CH-IT)
- Safety-Data-Sheet (FR-FR)
- Safety-Data-Sheet (DE-DE)
- Safety-Data-Sheet (CH-DE)
- Safety-Data-Sheet (NL-NL)
- Safety-Data-Sheet (DE-DE)
- Safety-Data-Sheet (CH-DE)
- Safety-Data-Sheet (EN-EN)
- Safety-Data-Sheet (ES-ES)
- Safety-Data-Sheet (EN-EN)
- Safety-Data-Sheet (CH-IT)
- Safety-Data-Sheet (CH-FR)
- Safety-Data-Sheet (FR-FR)
- Safety-Data-Sheet (CH-FR)
- Safety-Data-Sheet (NL-NL)
- Safety-Data-Sheet (IT-IT)
- Safety-Data-Sheet (PL-PL)
- Safety-Data-Sheet (DE-DE)
- Safety-Data-Sheet (CH-DE)
- Safety-Data-Sheet (CH-DE)
- Safety-Data-Sheet (DE-DE)
- Safety-Data-Sheet (FR-FR)
- Safety-Data-Sheet (EN-EN)
- Safety-Data-Sheet (EN-EN)
- Safety-Data-Sheet (FR-FR)
- Safety-Data-Sheet (CH-FR)
- Safety-Data-Sheet (CH-FR)
- Safety-Data-Sheet (IT-IT)
- Safety-Data-Sheet (IT-IT)
- Safety-Data-Sheet (NL-NL)
- Safety-Data-Sheet (CH-IT)
- Safety-Data-Sheet (CH-IT)
- Safety-Data-Sheet (NL-NL)
- Safety-Data-Sheet (ES-ES)
- Safety-Data-Sheet (PL-PL)
- Safety-Data-Sheet (ES-ES)

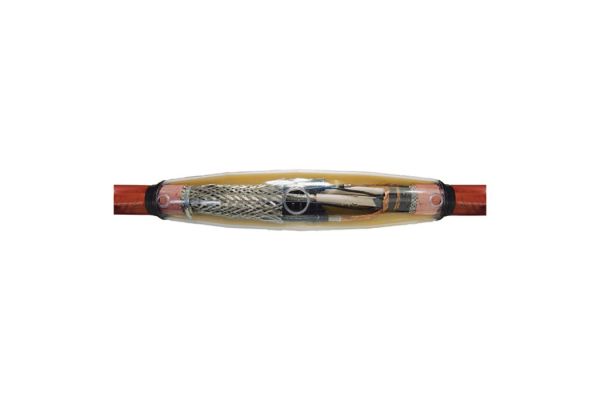

- Family image
