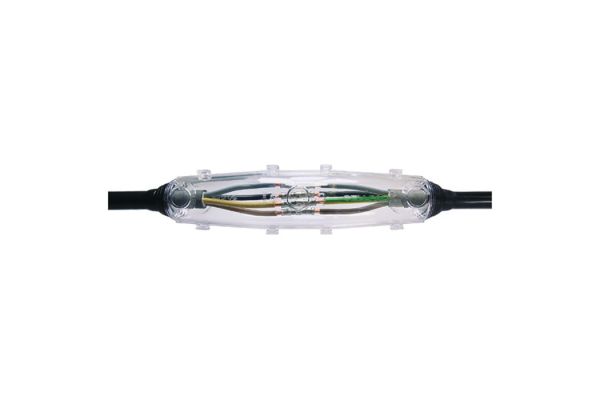

Cast resin straight-through joint
for polymeric cables and control cables and signal cables
Art. no.
124300
More Information
Product family M...EG
Main description Cast resin straight-through joint
Sub description for polymeric cables and control cables and signal cables
Family description Universally suitable for connecting polymeric cables or conductors insulated with PVC, PE, XLPE and EPR (e.g. N(A)YY, NYM, TT). Suitable for compression or screw connectors on copper and aluminium conductors.
Characteristics Compact dimensions, Splice area visible before casting, High-quality transparent shockproof plastic shell, Resistant to chemical agents, Stabilized against UV rays, Resistant to alkaline earth elements, Longitudinally and transversely watertight, High electrical insulating values, High mechanical strength, Ready for immediate operation, Quick, safe and easy assembly
Applications Indoor, Outdoor, Underground, Water, Installation ducts
Family notes Armour continuity kit for armoured cable available on request.
Optional accessory Cleaner UNIVERSAL CLEANER 121 (see Accessories), Shield continuity wire SVL (see Accessories), Connectors (see Connecting technology)
More Information
Voltage levels U0/U (Um) 0,6/1 (1,2) kV
Test standards EN 50393
Length L 660 mm
Heigth H 165 mm
Diameter D 145 mm
Nominal cross section Polymeric cable unarmoured per conductor 3x max 300 mm²
Nominal cross section Polymeric cable unarmoured per conductor 4x max 240 mm²
Nominal cross section Polymeric cable unarmoured per conductor 5x max 185 mm²
Diameter cable max 80 mm
Nominal cross section Polymeric cable with concentric conductor per conductor 3x max 240 mm²
Nominal cross section Polymeric cable with concentric conductor per conductor 4x max 120 mm²
Nominal cross section Polymeric cable armoured per conductor mm² 3x 240 mm²
Nominal cross section Polymeric cable armoured per conductor 4x min 120 mm²
Nominal cross section Polymeric cable armoured per conductor 4x max 240 mm²
More Information
Delivery scope Fill and air-release funnel, Hydrolysis resistance PUR type EG cast resin, Packed in practical and easy-to-use two-chamber bags, Transparent plastic shell, PVC insulation tape, Protective gloves, Assembly instructions
Shelf life 40 Month
Country of origin Germany
Customs tariff number 39095090
EAN-UPC 4010311000114
Alternate quantity 1 1 1
Alternative unit of measure Piece Case Pal. EU
Base quantity 1 1 20
Base unit of measure Piece Piece Piece
Lenght 732 732 1200
Width 279 279 800
Height 232 232 1130
Dimension unit Millimetres Millimetres Millimetres
Volume 47,381 47,381 1084,8
Volume unit Cubic decimetres Cubic decimetres Cubic decimetres
Net weight 10,012 10,012 200,24
Gross weight 10,012 10,012 229,24
Weight unit Kilogram Kilogram Kilogram
