M 16 EG

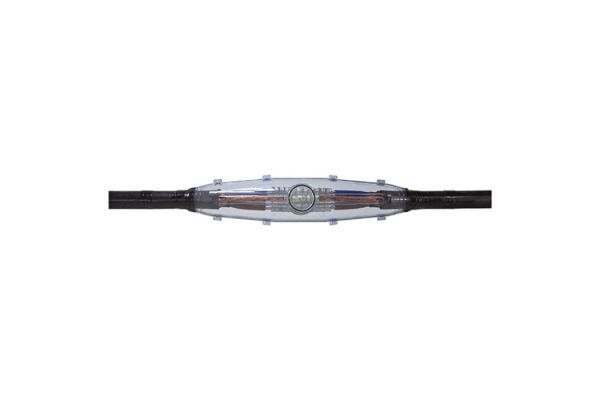

Cast resin straight-through joint
for polymeric cables
Art. no.
124176
| Product family | M…EG Euroline |
|---|---|
| Main description | Cast resin straight-through joint |
| Sub description | for polymeric cables |
| Family description | Universally suitable for connecting polymeric cables or conductors insulated with PVC, PE, XLPE and EPR (e.g. N(A)YY, NYM, TT). With hydrolysis resistance PUR cast resin EG. Suitable for compression or screw connectors on copper and aluminium conductors. |
| Notes | Armour continuity kit for armoured cable available on request., The European Commission amended Annex XVII of the REACH Regulation (EC) (new number 74) with Regulation (EU) 2020/1149, which entered into force on 24 August 2020. In accordance with the new REACH Regulation, appropriate training will be required prior to the industrial or professional use of diisocyanates, adhesives and sealants as of 24 August 2023. All information regarding training materials and training courses is available on the ISOPA/ALIPA website https://www.safeusediisocyanates.eu/ |
| Optional accessory | Cleaner UNIVERSAL CLEANER 121 (see Accessories), Connectors (see Connecting technology) |
| Characteristics | Compact dimensions, Splice area visible before casting, High-quality transparent shockproof plastic shell, Resistant to chemical agents, Stabilized against UV rays, Resistant to alkaline earth elements, Longitudinally and transversely watertight, High electrical insulating values, High mechanical strength, Ready for immediate operation, Quick, safe and easy assembly, Large filler aperture to facilitate casting |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Length L | 700 mm |
| Heigth H | 160 mm |
| Diameter D | 125 mm |
| Nominal cross section Polymeric cable unarmoured per conductor 3x max | 240 mm² |
| Nominal cross section Polymeric cable unarmoured per conductor 4x max | 240 mm² |
| Nominal cross section Polymeric cable unarmoured per conductor 5x max | 185 mm² |
| Diameter cable max | 81 mm |
| Nominal cross section Polymeric cable with concentric conductor per conductor 3x max | 240 mm² |
| Nominal cross section Polymeric cable with concentric conductor per conductor 4x max | 185 mm² |
| Nominal cross section Polymeric cable armoured per conductor 4x max | 240 mm² |
| Delivery scope | Hydrolysis resistance PUR cast resin EG, Packed in practical and easy-to-use two-chamber bags, Transparent plastic shell, Cover, PVC insulation tape, Protective gloves, Assembly instructions | ||
|---|---|---|---|
| Shelf life | 40 Month | ||
| Storage temperatur min | 15 °C | ||
| Storage temperatur max | 35 °C | ||
| Country of origin | Germany | ||
| Customs tariff number | 39095090 | ||
| EAN/GTIN | 4010311000190 | ||
| Packaging type | Piece | Case | Pal. OW |
| Content quantity | 1 | 1 | 20 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 724 | 724 | 1200 |
| Width (mm) | 237 | 237 | 800 |
| Height (mm) | 235 | 235 | 1130 |
| Net weight (kg) | 8,948 | 8,948 | 178,96 |
| Gross weight (kg) | 8,948 | 8,948 | 197,16 |
