M 14 S

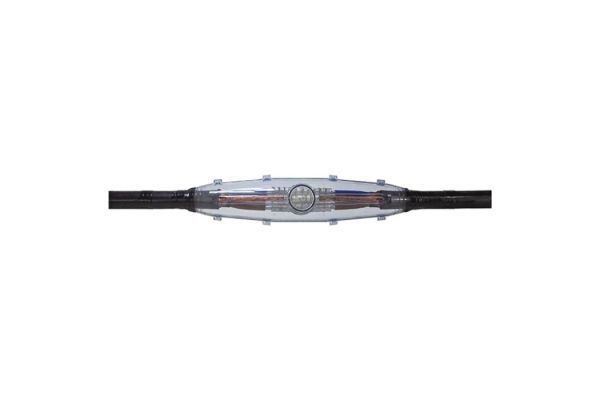

Cast resin straight-through joint
for polymeric cables
Art. no.
124173
More Information
Product family M-Euroline
Main description Cast resin straight-through joint
Sub description for polymeric cables
Family description Universally suitable for connecting polymeric cables or conductors insulated with PVC, PE, XLPE and EPR (e.g. N(A)YY, NYM, TT). Suitable for compression or screw connectors on copper and aluminium conductors.
Characteristics Compact dimensions, Splice area visible before casting, High-quality transparent shockproof plastic shell, Resistant to chemical agents, Stabilized against UV rays, Resistant to alkaline earth elements, Longitudinally and transversely watertight, High electrical insulating values, High mechanical strength, Ready for immediate operation, Quick, safe and easy assembly, Large filler aperture to facilitate casting
Applications Indoor, Outdoor, Underground, Water, Installation ducts
Family notes Armour continuity kit for armoured cable available on request.
Optional accessory Cleaner UNIVERSAL CLEANER 121 (see Accessories), Connectors (see Connecting technology)
More Information
Voltage levels U0/U (Um) 0,6/1 (1,2) kV
Test standards EN 50393
Length L 350 mm
Heigth H 95 mm
Diameter D 70 mm
Nominal cross section Polymeric cable unarmoured per conductor 1x max 630 mm²
Nominal cross section Polymeric cable unarmoured per conductor 3x max 70 mm²
Nominal cross section Polymeric cable unarmoured per conductor 4x max 70 mm²
Nominal cross section Polymeric cable unarmoured per conductor 5x max 50 mm²
Diameter cable max 48 mm
Nominal cross section Polymeric cable with concentric conductor per conductor 3x max 70 mm²
Nominal cross section Polymeric cable with concentric conductor per conductor 4x max 50 mm²
Nominal cross section Polymeric cable armoured per conductor 4x max 50 mm²
More Information
Delivery scope Hydrolysis resistance PUR type EG cast resin, Packed in practical and easy-to-use two-chamber bags, Transparent plastic shell, Cover, PVC insulation tape, Protective gloves, Assembly instructions
Shelf life 40 Month
Country of origin Germany
Customs tariff number 39095090
EAN-UPC 4010311000169
Alternate quantity 1 1 1
Alternative unit of measure Piece Case Pal. OW
Base quantity 1 1 70
Base unit of measure Piece Piece Piece
Lenght 422 422 1200
Width 238 238 800
Height 92 92 1130
Dimension unit Millimetres Millimetres Millimetres
Volume 9,24 9,24 1084,8
Volume unit Cubic decimetres Cubic decimetres Cubic decimetres
Net weight 1,686 1,686 118,02
Gross weight 1,686 1,686 136,22
Weight unit Kilogram Kilogram Kilogram
