SMSV 95-240

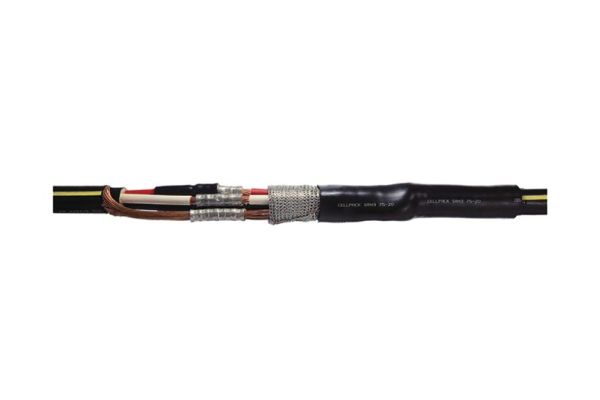

Heat shrinkable universal straight-through joint
with screw connectors for cables with concentric conductor
Art. no.
335144
| Product family | SMSV |
|---|---|
| Main description | Heat shrinkable universal straight-through joint |
| Sub description | with screw connectors for cables with concentric conductor |
| Family description | Universally suitable for connecting polymeric-insulated cables and conductors with concentric conductors and insulations made of PVC, PE and XLPE, e.g. GKN and GN-CLN. |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Resistant to alkaline earth elements, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Transversely waterproof, High electrical insulating values, High mechanical strength, Ready for immediate operation |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts, Ductwork |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Length L1 | 1000 mm |
| Nominal cross section Polymeric cable with concentric conductor per conductor 3x min | 95 mm² |
| Nominal cross section Polymeric cable with concentric conductor per conductor 3x max | 240 mm² |
| Delivery scope | Outer sleeve, Inner sleeves, Inner protective sleeve (belt sleeve), Copper braid tape, Screw connectors with shear head bolts, Cleaning tissue, Emery cloth, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 39173900 | ||
| EAN/GTIN | 4010311164823 | ||
| Packaging type | Piece | Bag1 | Carton |
| Content quantity | 1 | 1 | 70 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 633 | 633 | 1100 |
| Width (mm) | 100 | 100 | 330 |
| Height (mm) | 60 | 60 | 330 |
| Net weight (kg) | 0,262 | 0,262 | 18,34 |
| Gross weight (kg) | 0,262 | 0,262 | 18,64 |
