CHESK-3F(A) 24kV 95-240

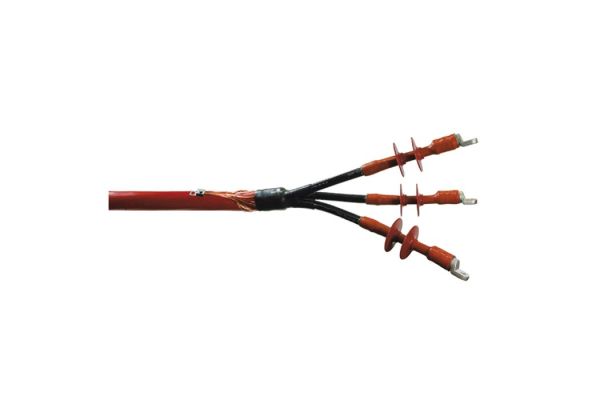

3-core outdoor cable termination
with screw cable lugs for 3-core polymeric cables
Art. no.
309821
More Information
Product family CHESK-3F(A)
Main description 3-core outdoor cable termination
Sub description with screw cable lugs for 3-core polymeric cables
Family description Hybrid cable terminations CHESK-3F(A) are suitable for all 3-core polymericinsulated cables (PVC, PE, XLPE, EPR) with different types of semi-conductive layers (graphite-coated, removable or strippable) and screen design (copper wire or tape). With screw cable lugs.
Notes Can be used also for cables Um = 7,2 kV, then the minimum diameter over conductor insulation has to be checked.
Optional accessory EGA earthing kit for cables with tape screen (see Connecting technology)
Characteristics Flexible silicone stress control elements ensure reliable stress control under all operating conditions, Combination of slip-on and heat shrinkable components, Wide cross-section range, Quick, safe and easy assembly, Ready for immediate operation
Applications Outdoor
More Information
Voltage levels U0/U (Um) 12/20 (24) kV - 12,7/22 (24) kV
Test standards CENELEC HD 629.1
Length L 1200 mm
Diameter over core insulation after removal of the outer conductive layer min 19,9 mm
Number of sheds per phase 3 Pieces
Diameter shed 85 mm
Nominal cross section 17,5 kV min 95 mm²
Nominal cross section 17,5 kV max 240 mm²
Nominal cross section 24 kV min 95 mm²
Nominal cross section 24 kV max 240 mm²
More Information
Delivery scope Spreader cap, Heat shrinkable tube (tracking resistant), Heat shrinkable tube medium-walled, Silicone field control elements, Silicone sheds, Binding wire, Sealing tape, Assembly material, Screw cable lugs, Assembly instructions
Shelf life description Unlimited shelf life
Country of origin Germany
Customs tariff number 85469090
EAN/GTIN 4010311165011
Packaging type Piece Carton Pal. OW
Content quantity 1 1 12
Unit of measure Piece Piece Piece
Lenght (mm) 865 865 1200
Width (mm) 369 369 800
Height (mm) 170 170 1130
Net weight (kg) 3,435 3,435 41,22
Gross weight (kg) 3,435 3,437 59,444
