SEH4 150-55

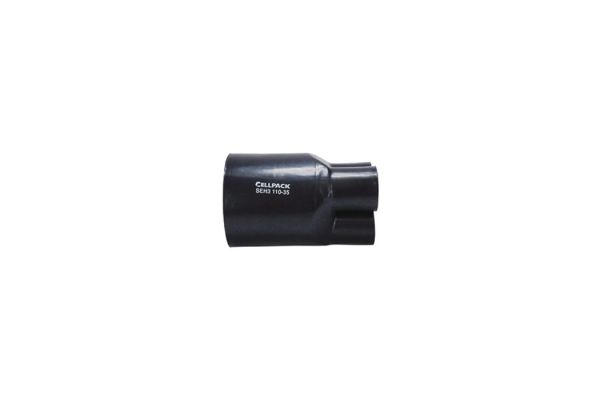

Heat shrinkable spreader cap
for 2- 3- 4- 5-core cables with adhesive
Art. no.
302333
More Information
Product family SEH
Main description Heat shrinkable spreader cap
Sub description for 2- 3- 4- 5-core cables with adhesive
Family description Sealing spreader caps for plastic-, rubber- and paper-insulated cables.
Notes Recovered dimension after shrinking
Characteristics With hot melt adhesive, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Superior electrical properties, Pressure-tight, Superior mechanical properties, 100 % waterproof
Applications Indoor, Outdoor
More Information
Test standards IEC 60684-2
Materials Cross-linked polyolefin, Free of lead and cadmium
Selection Note 4-fingers spreader cap
Length L1 190 mm
Length L1* 245 mm
Length L2 47 mm
Colours black
Inner diameter D1 before shrinking 150
Inner diameter D1 after shrinking 55
Inner diameter D2 before shrinking 57
Inner diameter D2 after shrinking 22
Recovered wall thickness 4,2 mm
Nominal cross section min 240 mm²
Nominal cross section max 500 mm²
Elongation at break 300 %
Elongation at break (associated standard) IEC 62677-2
Tensile strength at break 10 MPa
Tensile strength at break (associated standard) IEC 62677-2
Operating temperature range min -40 °C
Operating temperature range max 100 °C
Operating temperature range (associated standard) IEC 62677-2
Shrinkage temperature > 110 °C
Burning behaviour not self-extinguishing
Burning behaviour (associated standard) IEC 60684-2
Flexibility at low temperatures -40 °C
Flexibility at low temperatures (associated standard) IEC 62677-2
Thermal ageing (168 h at 150 °C): Elongation at break 200 %
Thermal ageing (168 h at 150 °C): Tensile strength at break 8 MPa
Thermal ageing (168 h at 150 °C) (associated standard) IEC 62677-2
Operation temperature min. -40 °C
Operation temperature max. 100 °C
Operation temperature (associated standard) IEC 62677-2
Specific volume resistivity 10¹² Ω cm
Specific volume resistivity (associated standard) EN 62677-2
Dielectric strength ​​ 10 kV/mm
Dielectric strength (associated standard) IEC 60243-1
Corrosion none
Corrosion (associated standard) EN 62677-2
Resistance to fungus and decay Rate 1
Resistance to fungus and decay (associated standard) IEC 62677-2
More Information
Delivery scope Heat shrinkable spreader cap
Shelf life description Unlimited shelf life
Country of origin India
Customs tariff number 39174000
EAN/GTIN 4010311155685
Packaging type Piece Bag Pack Carton
Content quantity 1 5 5 40
Unit of measure Piece Piece Piece Piece
Lenght (mm) 197 197 197 830
Width (mm) 157 157 157 430
Height (mm) 157 157 157 570
Net weight (kg) 0,251 1,255 1,255 10,04
Gross weight (kg) 0,251 1,26 1,26 10,34
