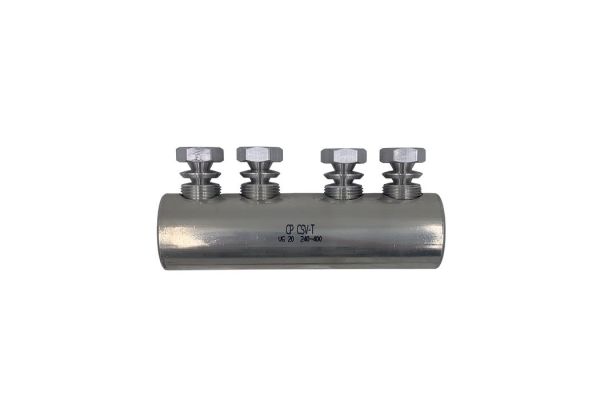

CSV-T 240-400
Screw connector for Cu and Al
longitudinally sealed with separator for low voltage
Art. no.
289677
| Product family | CSV-T |
|---|---|
| Main description | Screw connector for Cu and Al |
| Sub description | longitudinally sealed with separator for low voltage |
| Family description | Screw connector for RM/SM/RE/SE aluminium and copper conductors, suitable for straight-through and transition joints. |
| Notes | BBC Cellpack counter-holder recommended for installation (see Accessories). |
| Applications | For connecting conductors RM/SM (class 2), RE/SE (class 1) according to DIN EN/IEC 60228 (VDE 0295) |
| Test standards | IEC 61238-1 |
|---|---|
| Materials | Aluminium tin-plated |
| Nominal cross section RM min | 240 mm² |
| Nominal cross section RM max | 400 mm² |
| Nominal cross section SM min | 240 mm² |
| Nominal cross section SM max | 400 mm² |
| Nominal cross section SE min | 240 mm² |
| Nominal cross section SE max | 400 mm² |
| Nominal cross section RE min | 240 mm² |
| Nominal cross section RE max | 400 mm² |
| Length L | 150 mm |
| Length L1 | 73 mm |
| Diameter D1 | 26 mm |
| Diameter D2 | 30 mm |
| Diameter D3 | 42 mm |
| Number of bolts | 4 Pieces |
| Delivery scope | Screw connector, Assembly instructions | ||
|---|---|---|---|
| Country of origin | Czech Republic | ||
| Customs tariff number | 85369010 | ||
| EAN/GTIN | 4010311149004 | ||
| Packaging type | Piece | Bag1 | Carton |
| Content quantity | 1 | 1 | 25 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 163 | 163 | 425 |
| Width (mm) | 80 | 80 | 260 |
| Height (mm) | 45 | 45 | 150 |
| Net weight (kg) | 0,388 | 0,388 | 9,7 |
| Gross weight (kg) | 0,388 | 0,388 | 10 |
