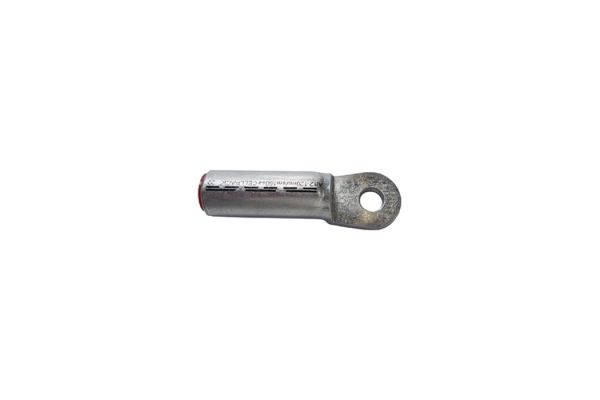

DK-AL-LD 150/12

Compression cable lug Al
longitudinally sealed for low and medium voltage
Art. no.
194937
More Information
Product family DK-AL-LD
Main description Compression cable lug Al
Sub description longitudinally sealed for low and medium voltage
Family description Cable lug (hexagonally compressed) for aluminium conductors, suitable for indoor and outdoor cable terminations.
Notes To be used with suitable crimping tool with DIN inserts
Applications Cable lug for aluminium conductor RM/SM (Class 2), RE and SE (Class 1) according to DIN EN 60228 (VDE 0295)
More Information
Test standards DIN 46329
Materials Blank aluminium
Length L 90 mm
Width B 30 mm
Diameter D1 16,3 mm
Diameter D2 13 mm
Diameter D3 25 mm
Nominal cross section RM/SM 150 mm²
Nominal cross section SE 185 mm²
Press die code K 25 mm
Length A 60 mm
More Information
Delivery scope Compression cable lug
Country of origin Poland
Customs tariff number 85369010
EAN/GTIN 4010311052939
Packaging type Piece Bag1 Carton
Content quantity 1 1 50
Unit of measure Piece Piece Piece
Lenght (mm) 110 110 290
Width (mm) 30 30 195
Height (mm) 25 25 145
Net weight (kg) 0,088 0,088 4,4
Gross weight (kg) 0,088 0,088 4,7
