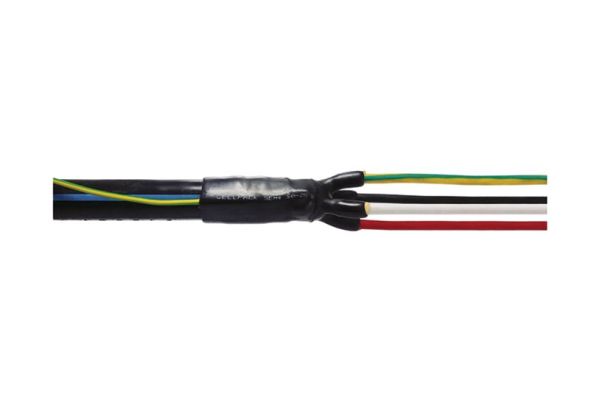

SEH4 10-35 V-S
Heat shrinkable indoor cable termination
for armoured polymeric cables
Art. no.
131999
| Product family | SEH4…V-S |
|---|---|
| Main description | Heat shrinkable indoor cable termination |
| Sub description | for armoured polymeric cables |
| Family description | For connecting polymeric cables to distribution cupboards and panels. Suitable for PVC and XLPE insulated cables and PVC and PE cable sheaths with protective armouring (e.g. GN-CLN). Suitable for compression lugs on aluminium and copper conductors. |
| Optional accessory | Compression cable lugs (see Connecting technology) |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Transversely waterproof, High electrical insulating values, High mechanical strength, Ready for immediate operation |
| Applications | Indoor |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Length L | 20 mm |
| Nominal cross section Polymeric cable armoured per conductor 4x min | 10 mm² |
| Nominal cross section Polymeric cable armoured per conductor 4x max | 35 mm² |
| Delivery scope | Sealing tubes, Spreader cap, Cleaning tissue, Emery cloth, Assembly instructions | |
|---|---|---|
| Shelf life description | Unlimited shelf life | |
| Country of origin | Germany | |
| Customs tariff number | 39174000 | |
| EAN/GTIN | 4010311156897 | |
| Packaging type | Piece | Bag1 |
| Content quantity | 1 | 1 |
| Unit of measure | Piece | Piece |
| Lenght (mm) | 238 | 238 |
| Width (mm) | 121 | 121 |
| Height (mm) | 47 | 47 |
| Net weight (kg) | 0,077 | 0,077 |
| Gross weight (kg) | 0,077 | 0,077 |
