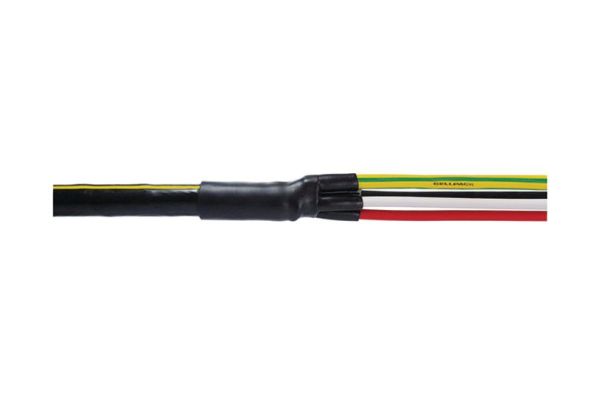

SEH4 10-35 V-C
Heat shrinkable indoor cable termination
for polymeric cables with concentric conductor
Art. no.
126822
| Product family | SEH4…V-C |
|---|---|
| Main description | Heat shrinkable indoor cable termination |
| Sub description | for polymeric cables with concentric conductor |
| Family description | For connecting polymeric cables to distribution cupboards and panels. Suitable for PVC and XLPE insulated cables and PVC and PE cable sheaths with concentric conductor (e.g. GKN). Suitable for compression lugs on aluminium and copper conductors. |
| Optional accessory | Compression cable lugs (see Connecting technology) |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Transversely waterproof, High electrical insulating values, High mechanical strength, Ready for immediate operation |
| Applications | Indoor |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Length L | 20 mm |
| Nominal cross section Polymeric cable with concentric conductor per conductor 3x min | 10 mm² |
| Nominal cross section Polymeric cable with concentric conductor per conductor 3x max | 35 mm² |
| Delivery scope | Sealing tubes, Heat shrinkable tube green-yellow, Spreader cap, Cleaning tissue, Emery cloth, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 39174000 | ||
| EAN/GTIN | 4010311115887 | ||
| Packaging type | Piece | Bag1 | Carton |
| Content quantity | 1 | 1 | 40 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 412 | 412 | 880 |
| Width (mm) | 166 | 166 | 445 |
| Height (mm) | 47 | 47 | 390 |
| Net weight (kg) | 0,094 | 0,094 | 3,76 |
| Gross weight (kg) | 0,094 | 0,094 | 4,06 |
