SEH4 50 A+Z
Heat shrinkable cable termination
for armoured polymeric cables mit konzentrischem Leiter
Art. no.
126807
| Product family | SEH4…A+Z |
|---|---|
| Main description | Heat shrinkable cable termination |
| Sub description | for armoured polymeric cables mit konzentrischem Leiter |
| Family description | Universally suitable for connecting polymeric cables and cable sheaths insulated with PVC and PE with concentric conductor (e.g. GKN) or protective armour (e.g. GN-CLN). Suitable for compression lugs or compression connectors on aluminium and copper conductors. |
| Optional accessory | Compression cable lugs (see Connecting technology) |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Transversely waterproof, High electrical insulating values, High mechanical strength, Ready for immediate operation |
| Applications | Indoor, Outdoor, For double compression connectors with separators complying with DIN 46267 |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Length L | 20 mm |
| Length L1 | 105 mm |
| Nominal cross section Polymeric cable with concentric conductor per conductor 3x max | 50 mm² |
| Nominal cross section Polymeric cable armoured per conductor 4x min | 50 mm² |
| Nominal cross section Polymeric cable armoured per conductor 4x max | 50 mm² |
| Delivery scope | Sealing tubes, Spreader cap, Core insulating tubes, incl. 4 compression connectors with separator, Cleaning tissue, Emery cloth, Assembly instructions | |
|---|---|---|
| Shelf life description | Unlimited shelf life | |
| Country of origin | Germany | |
| Customs tariff number | 39174000 | |
| EAN/GTIN | 4010311048673 | |
| Packaging type | Piece | Bag1 |
| Content quantity | 1 | 1 |
| Unit of measure | Piece | Piece |
| Lenght (mm) | 272 | 272 |
| Width (mm) | 227 | 227 |
| Height (mm) | 87 | 87 |
| Net weight (kg) | 0,422 | 0,422 |
| Gross weight (kg) | 0,422 | 0,422 |
- REACH conformity declaration (de)
- REACH conformity declaration (en)
- REACH conformity declaration (sp)
- REACH conformity declaration (fr)
- REACH conformity declaration (it)
- REACH conformity declaration (nl)
- REACH conformity declaration (pl)
- RoHS conformity declaration (de)
- RoHS conformity declaration (en)
- RoHS conformity declaration (sp)
- RoHS conformity declaration (fr)
- RoHS conformity declaration (it)
- RoHS conformity declaration (nl)
- RoHS conformity declaration (pl)
- Conflict minerals declaration (de)
- Conflict minerals declaration (en)
- Conflict minerals declaration (sp)
- Conflict minerals declaration (fr)
- Conflict minerals declaration (it)
- Conflict minerals declaration (nl)
- Conflict minerals declaration (pl)
- Technical data sheet (de)
- Technical data sheet (en)
- Technical data sheet (sp)
- Technical data sheet (fr)
- Technical data sheet (it)
- Technical data sheet (nl)
- Technical data sheet (pl)
- Product drawing
- Image movie (de)
- Image movie (en)
- Image movie (fr)
- POP conformity declaration (de)
- POP conformity declaration (en)
- ROHS-Declaration (-)
- Conflict-Minerals-Declaration (-)
- REACH-Declaration (-)
- POP-Declaration (-)

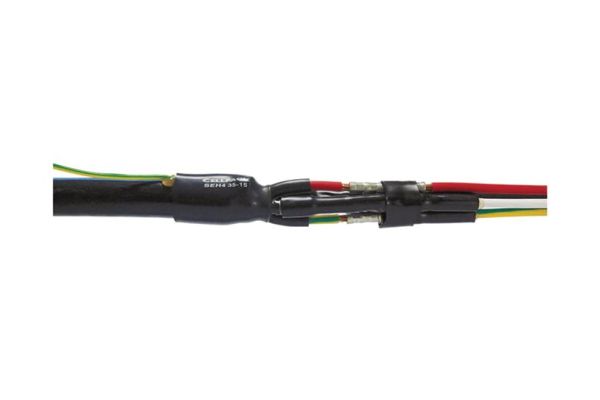

- Family image
