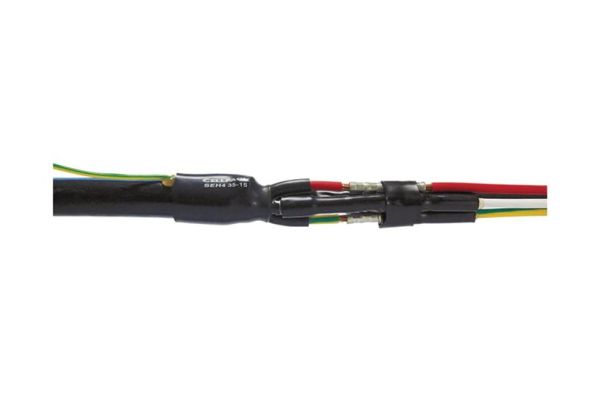

SEH4 25 A+Z
Heat shrinkable cable termination
for armoured polymeric cables mit konzentrischem Leiter
Art. no.
126805
| Product family | SEH4…A+Z |
|---|---|
| Main description | Heat shrinkable cable termination |
| Sub description | for armoured polymeric cables mit konzentrischem Leiter |
| Family description | Universally suitable for connecting polymeric cables and cable sheaths insulated with PVC and PE with concentric conductor (e.g. GKN) or protective armour (e.g. GN-CLN). Suitable for compression lugs or compression connectors on aluminium and copper conductors. |
| Optional accessory | Compression cable lugs (see Connecting technology) |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Transversely waterproof, High electrical insulating values, High mechanical strength, Ready for immediate operation |
| Applications | Indoor, Outdoor, For double compression connectors with separators complying with DIN 46267 |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Length L | 20 mm |
| Length L1 | 85 mm |
| Nominal cross section Polymeric cable with concentric conductor per conductor 3x max | 25 mm² |
| Nominal cross section Polymeric cable armoured per conductor 4x min | 25 mm² |
| Nominal cross section Polymeric cable armoured per conductor 4x max | 25 mm² |
| Delivery scope | Sealing tubes, Spreader cap, Core insulating tubes, incl. 4 compression connectors with separator, Cleaning tissue, Emery cloth, Assembly instructions | |
|---|---|---|
| Shelf life description | Unlimited shelf life | |
| Country of origin | Germany | |
| Customs tariff number | 39174000 | |
| EAN/GTIN | 4010311048659 | |
| Packaging type | Piece | Bag1 |
| Content quantity | 1 | 1 |
| Unit of measure | Piece | Piece |
| Lenght (mm) | 276 | 276 |
| Width (mm) | 130 | 130 |
| Height (mm) | 52 | 52 |
| Net weight (kg) | 0,194 | 0,194 |
| Gross weight (kg) | 0,194 | 0,194 |
