SEH4 16 A+Z

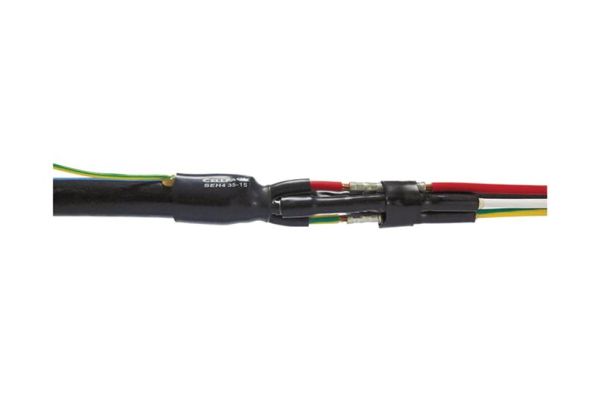

Heat shrinkable cable termination
for armoured polymeric cables mit konzentrischem Leiter
Art. no.
126804
| Product family | SEH4…A+Z |
|---|---|
| Main description | Heat shrinkable cable termination |
| Sub description | for armoured polymeric cables mit konzentrischem Leiter |
| Family description | Universally suitable for connecting polymeric cables and cable sheaths insulated with PVC and PE with concentric conductor (e.g. GKN) or protective armour (e.g. GN-CLN). Suitable for compression lugs or compression connectors on aluminium and copper conductors. |
| Optional accessory | Compression cable lugs (see Connecting technology) |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Transversely waterproof, High electrical insulating values, High mechanical strength, Ready for immediate operation |
| Applications | Indoor, Outdoor, For double compression connectors with separators complying with DIN 46267 |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Length L | 20 mm |
| Length L1 | 85 mm |
| Nominal cross section Polymeric cable with concentric conductor per conductor 3x max | 16 mm² |
| Nominal cross section Polymeric cable armoured per conductor 4x min | 16 mm² |
| Nominal cross section Polymeric cable armoured per conductor 4x max | 16 mm² |
| Delivery scope | Sealing tubes, Spreader cap, Core insulating tubes, incl. 4 compression connectors with separator, Cleaning tissue, Emery cloth, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 39174000 | ||
| EAN/GTIN | 4010311048642 | ||
| Packaging type | Piece | Bag1 | Carton |
| Content quantity | 1 | 1 | 10 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 257 | 257 | 425 |
| Width (mm) | 241 | 241 | 260 |
| Height (mm) | 45 | 45 | 155 |
| Net weight (kg) | 0,175 | 0,175 | 1,75 |
| Gross weight (kg) | 0,175 | 0,175 | 2,05 |
