ZS-PPb 4-10
Accessory kit
for mass-impregnated paper cables for joints SM and SM-MA
Art. no.
126773
| Product family | ZS-PPb |
|---|---|
| Main description | Accessory kit |
| Sub description | for mass-impregnated paper cables for joints SM and SM-MA |
| Family description | To build a transition joint for mass-impregnated paper cables for the heat shrinkable universal straight-through joints. |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Resistant to alkaline earth elements, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, High electrical insulating values, High mechanical strength |
| Applications | For heat shrinkable universal straight-through joints SM and SM-MA |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |

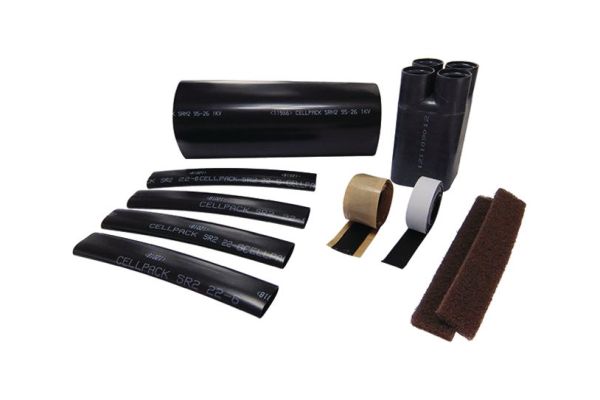

| Delivery scope | Spreader cap, Heat shrinkable tubes, Roughening strip | ||
|---|---|---|---|
| Country of origin | Germany | ||
| Customs tariff number | 39174000 | ||
| EAN/GTIN | 4010311048451 | ||
| Packaging type | Piece | Bag1 | Carton |
| Content quantity | 1 | 1 | 20 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 235 | 235 | 475 |
| Width (mm) | 225 | 225 | 400 |
| Height (mm) | 50 | 50 | 225 |
| Net weight (kg) | 0,148 | 0,148 | 2,96 |
| Gross weight (kg) | 0,148 | 0,148 | 3,26 |
