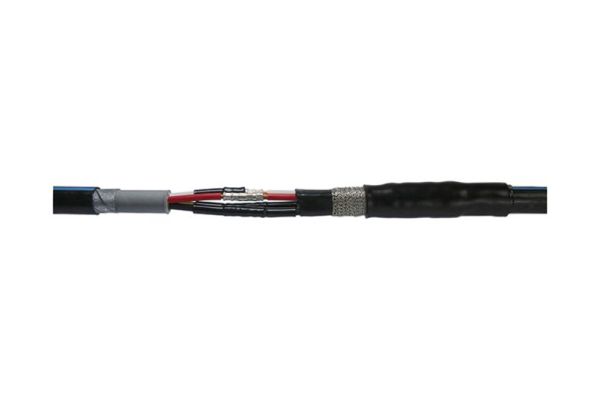

SMDH 120-240
Heat shrinkable straight-through joint
for armoured polymeric cables
Art. no.
126721
| Product family | SMDH |
|---|---|
| Main description | Heat shrinkable straight-through joint |
| Sub description | for armoured polymeric cables |
| Family description | Universally suitable for connecting light armoured polymeric cables insulated with PVC, PE and XLPE (e.g. GN-CLN). Suitable for compression connectors. |
| Optional accessory | Compression connectors (see Connecting technology) |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Resistant to alkaline earth elements, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Transversely waterproof, High electrical insulating values, High mechanical strength, Ready for immediate operation |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts, Ductwork |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Length L1 | 1000 mm |
| Nominal cross section Polymeric cable armoured per conductor 4x min | 120 mm² |
| Nominal cross section Polymeric cable armoured per conductor 4x max | 240 mm² |
| Delivery scope | Outer sleeve, Inner sleeves, Inner protective sleeve (belt sleeve), Copper braid tape, Cleaning tissue, Emery cloth, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 39174000 | ||
| EAN/GTIN | 4010311048321 | ||
| Packaging type | Piece | Bag1 | Carton |
| Content quantity | 1 | 1 | 5 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 1053 | 1053 | 1100 |
| Width (mm) | 253 | 253 | 330 |
| Height (mm) | 102 | 102 | 345 |
| Net weight (kg) | 1,698 | 1,698 | 8,49 |
| Gross weight (kg) | 1,698 | 1,698 | 8,79 |
