SM-MA 120-240

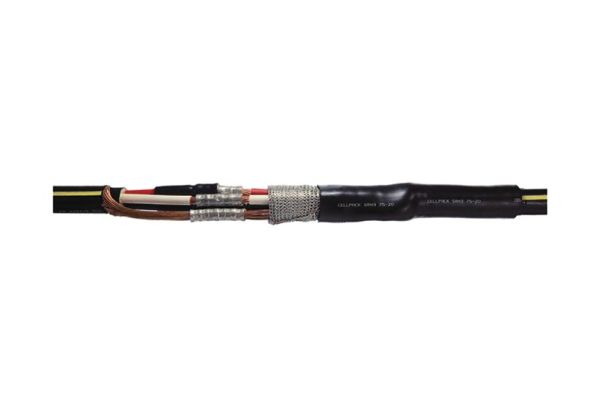

Heat shrinkable universal straight-through joint
for polymeric cables and mass-impregnated paper cables
Art. no.
126698
| Product family | SM, SM-MA |
|---|---|
| Main description | Heat shrinkable universal straight-through joint |
| Sub description | for polymeric cables and mass-impregnated paper cables |
| Family description | Universally suitable for connecting polymeric cables or conductors insulated with PVC, PE and XLPE (e.g. GKN, GN-CLN). With extra transition set to connect with mass-impregnated paper cables (GKN-PPb, GN-CLN-PPb). Suitable for compression connectors. |
| Optional accessory | Additiona kit ZS-PPb (required for PPb cables), Compression connectors (see Connecting technology) |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Resistant to alkaline earth elements, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Transversely waterproof, High electrical insulating values, High mechanical strength, Ready for immediate operation |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts, Ductwork |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Selection Note | Sleeve for outer protection |
| Length L1 | 1000 mm |
| Nominal cross section Polymeric cable unarmoured / armoured per conductor 4x min | 120 mm² |
| Nominal cross section Polymeric cable unarmoured / armoured per conductor 4x max | 240 mm² |
| Nominal cross section Mass-impregnated paper cable (with accessory kit ZS-PPb) per conductor 4x min | 120 mm² |
| Nominal cross section Mass-impregnated paper cable (with accessory kit ZS-PPb) per conductor 4x max | 240 mm² |
| Delivery scope | Outer sleeve, Inner sleeves, Inner protective sleeve (belt sleeve), Copper braid tape, Cleaning tissue, Emery cloth, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 39173900 | ||
| EAN/GTIN | 4010311048444 | ||
| Packaging type | Piece | Bag1 | Pal. OW |
| Content quantity | 1 | 1 | 30 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 1035 | 1035 | 1200 |
| Width (mm) | 229 | 229 | 800 |
| Height (mm) | 90 | 90 | 770 |
| Net weight (kg) | 1,977 | 1,977 | 59,31 |
| Gross weight (kg) | 1,977 | 1,977 | 77,51 |
