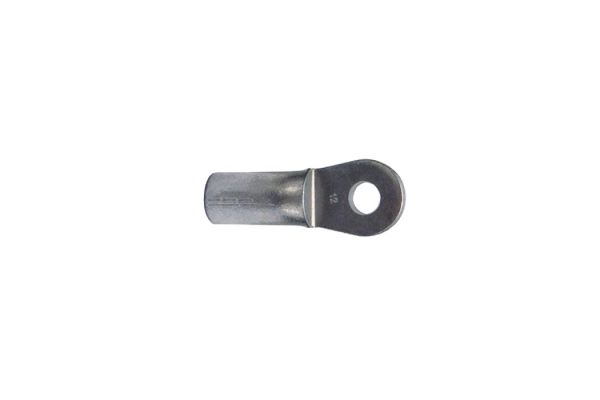

DK-CU-V-LD 95/12
Compression cable lug Cu
longitudinally sealed for low and medium voltage
Art. no.
126136
| Product family | DK-CU-V-LD |
|---|---|
| Main description | Compression cable lug Cu |
| Sub description | longitudinally sealed for low and medium voltage |
| Family description | Cable lug (hexagonally compressed) for copper conductors, suitable for outdoor cable terminations. |
| Notes | To be used with suitable crimping tool with DIN inserts |
| Applications | Cable lug for copper conductor RM/SM (Class 2) and Classes 5 and 6 according DIN EN 60228 (VDE 0295) |
| Test standards | DIN 46235 |
|---|---|
| Materials | Copper tin-plated |
| Length L | 65 mm |
| Width B | 28 mm |
| Diameter D1 | 13,5 mm |
| Diameter D2 | 13 mm |
| Diameter D3 | 19 mm |
| Nominal cross section min | 95 mm² |
| Press die code K | 18 mm |
| Length A | 35 mm |
| Delivery scope | Compression cable lug | ||
|---|---|---|---|
| Country of origin | Germany | ||
| Customs tariff number | 85369010 | ||
| EAN/GTIN | 4010311052748 | ||
| Packaging type | Piece | Bag1 | Carton |
| Content quantity | 1 | 1 | 50 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 78 | 78 | 190 |
| Width (mm) | 24 | 24 | 165 |
| Height (mm) | 17 | 17 | 75 |
| Net weight (kg) | 0,093 | 0,093 | 4,65 |
| Gross weight (kg) | 0,093 | 0,093 | 4,95 |
