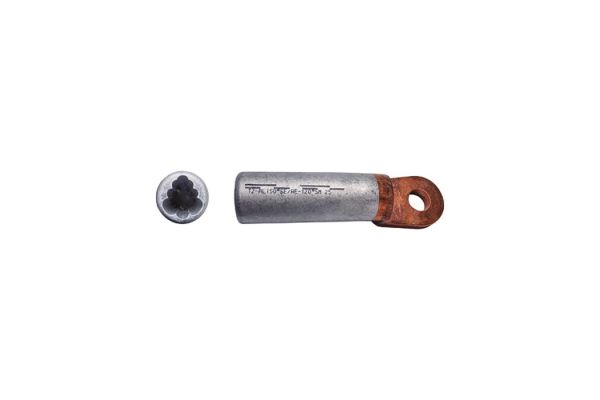

DKS-AL-CU-LD 95/12
Compression cable lug Al-Cu
longitudinally sealed, for low and medium voltage
Art. no.
126035
| Product family | DKS-AL-CU-LD |
|---|---|
| Main description | Compression cable lug Al-Cu |
| Sub description | longitudinally sealed, for low and medium voltage |
| Family description | Cable lug (hexagonally compressed) for aluminium sector-shaped conductors. |
| Notes | Round pressing is not necessary. |
| Length L | 85 mm |
|---|---|
| Width B | 30 mm |
| Diameter D2 | 13 mm |
| Diameter D3 | 23 mm |
| Nominal cross section SE | 95 mm² |
| Press die code K | 22 mm |
| Delivery scope | Compression cable lug | ||
|---|---|---|---|
| Country of origin | Czech Republic | ||
| Customs tariff number | 85369010 | ||
| EAN/GTIN | 4010311061627 | ||
| Packaging type | Piece | Bag1 | Carton |
| Content quantity | 1 | 1 | 50 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 108 | 108 | 310 |
| Width (mm) | 26 | 26 | 160 |
| Height (mm) | 22 | 22 | 100 |
| Net weight (kg) | 0,118 | 0,118 | 5,9 |
| Gross weight (kg) | 0,118 | 0,118 | 6,2 |
