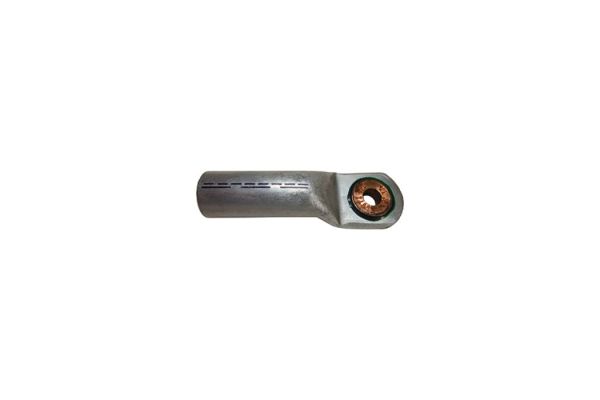

DK-AL-CU 185-240
Compression cable lug Al-Cu
according to DIN 48201 for aluminium transmission lines
Art. no.
126027
| Product family | DK-AL-CU |
|---|---|
| Main description | Compression cable lug Al-Cu |
| Sub description | according to DIN 48201 for aluminium transmission lines |
| Family description | For aluminium cables complying with DIN 48201 and round compressed sector-shaped conductors. Clear tool assignment by code number. |
| Length L | 106 mm |
|---|---|
| Width B | 40 mm |
| Diameter D1 | 13 mm |
| Nominal cross section min | 185 mm² |
| Nominal cross section max | 240 mm² |
| Nominal cross section RM/SM | 185 mm² |
| Nominal cross section SE | 240 mm² |
| Press die code K | 28 mm |
| Country of origin | Slovakia | ||
|---|---|---|---|
| Customs tariff number | 85369010 | ||
| EAN/GTIN | 4010311061610 | ||
| Packaging type | Piece | Bag1 | Case |
| Content quantity | 1 | 1 | 5 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 132 | 132 | 140 |
| Width (mm) | 38 | 38 | 110 |
| Height (mm) | 30 | 30 | 60 |
| Net weight (kg) | 0,148 | 0,148 | 0,74 |
| Gross weight (kg) | 0,148 | 0,148 | 1,04 |
