DVZ-CU-V-LD 120
Compression connector Cu
according to DIN 46267 with separator for low voltage
Art. no.
125903
| Product family | DVZ-CU-V-LD |
|---|---|
| Main description | Compression connector Cu |
| Sub description | according to DIN 46267 with separator for low voltage |

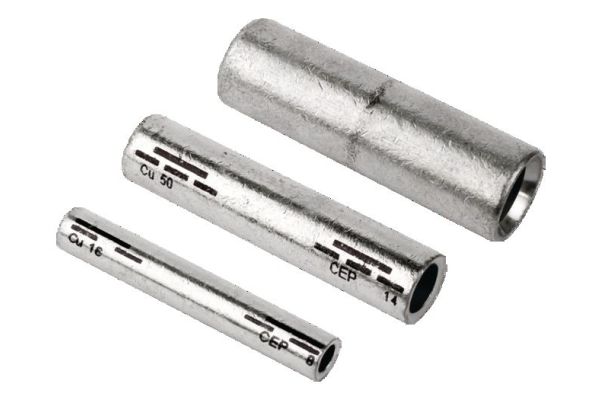

| Family description | Strain-relieving connector (hexagonally compressed) with a separator for copper conductors, suitable for joints. |
| Notes | To be used with suitable crimping tool with DIN inserts |
| Applications | Especially for transition joints and pot end joints, Connector for RM/SM (Class 2) copper conductors according to DIN EN 60228 (VDE 0295) |
| Test standards | DIN 46267-1 |
|---|---|
| Materials | Copper tin-plated |
| Length L | 70 mm |
| Diameter D1 | 15,5 mm |
| Nominal cross section min | 120 mm² |
| Nominal cross section max | 120 mm² |
| Press die code K | 20 mm |
| Delivery scope | Compression connectors | ||
|---|---|---|---|
| Country of origin | Slovakia | ||
| Customs tariff number | 85369010 | ||
| EAN/GTIN | 4010311053271 | ||
| Packaging type | Piece | Bag1 | Carton |
| Content quantity | 1 | 1 | 5 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 67 | 67 | 83 |
| Width (mm) | 21 | 21 | 68 |
| Height (mm) | 21 | 21 | 58 |
| Net weight (kg) | 0,1 | 0,1 | 0,5 |
| Gross weight (kg) | 0,1 | 0,1 | 0,8 |
