DVZ-CU-V-LD 70
Compression connector Cu
according to DIN 46267 with separator for low voltage
Art. no.
125901
| Product family | DVZ-CU-V-LD |
|---|---|
| Main description | Compression connector Cu |
| Sub description | according to DIN 46267 with separator for low voltage |

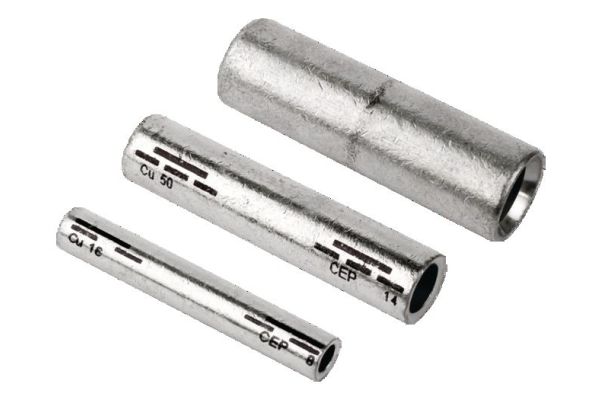

| Family description | Strain-relieving connector (hexagonally compressed) with a separator for copper conductors, suitable for joints. |
| Notes | To be used with suitable crimping tool with DIN inserts |
| Applications | Especially for transition joints and pot end joints, Connector for RM/SM (Class 2) copper conductors according to DIN EN 60228 (VDE 0295) |
| Test standards | DIN 46267-1 |
|---|---|
| Materials | Copper tin-plated |
| Length L | 56 mm |
| Diameter D1 | 11,5 mm |
| Nominal cross section min | 70 mm² |
| Nominal cross section max | 70 mm² |
| Press die code K | 16 mm |
| Delivery scope | Compression connectors | ||
|---|---|---|---|
| Country of origin | Germany | ||
| Customs tariff number | 85369010 | ||
| EAN/GTIN | 4010311053257 | ||
| Packaging type | Piece | Bag1 | Case |
| Content quantity | 1 | 1 | 25 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 55 | 55 | 140 |
| Width (mm) | 18 | 18 | 110 |
| Height (mm) | 18 | 18 | 60 |
| Net weight (kg) | 0,057 | 0,057 | 1,425 |
| Gross weight (kg) | 0,057 | 0,057 | 1,725 |
