CG 275
Two-component hydrocarbon resin
non-labelled free of silicone and isocyanate
Art. no.
434565
| Product family | CG |
|---|---|
| Main description | Two-component hydrocarbon resin |
| Sub description | non-labelled free of silicone and isocyanate |
| Family description | Cast resin CG is an environment-friendly and removable 2-component cold curing casting compound based on hydrocarbon resins which does not require hazardous label acc. to CLP-Regulation (EC) No. 1272/2008. The translucent cast resin allows a visual inspection even after the casting. The connection is accessible at any time by removing the cast resin. Typical application areas: cable branch-off cabinet, connection boxes, telecommunication cable connections, electronic components. |
| Notes | Other sizes available on request., Connection requires mechanical tension relief due to the flexibility of the resin e.g. by means of a mechanically stable joint housing. |
| Characteristics | Exceptional electrical insulation, Free hazardous labelling identification according to the CLP-Regulation (EC) No. 1272/2008, Free of isocyanate and silicon, Removable, Translucent before and after curing, Favourable flow properties, Low volume shrinkage, No fracturing under electrical stress, Excellent adhesion to all cable materials, Halogen-free, Cold curing (no heat during reaction), Halogen-free, Cold curing (no heat during reaction) |
| Test standards | IEC 60455-3-8, EN 50655-1 |
|---|---|
| Content | 275 ml |
| Processing time (pot life) 300 ml mixture 5 °C | 24 minutes |
| Processing time (pot life) 300 ml mixture 23 °C | 21 minutes |
| Processing time (pot life) 300 ml mixture 35 °C | 16 minutes |
| Processing time (pot life) 300 ml mixture (associated standard) | IEC 60454-2 |
| PEN-Hardness | 57 1/10 mm |
| PEN-Hardness (associated standard) | ISO 2137 |
| Viscosity (23 °C) | 4200 mPas |
| Viscosity (associated standard) | ISO 2555 |
| Volume resistance 23°C | > 10¹⁴ Ω cm |
| Volume resistance 23°C (associated standard) | IEC 60093 |
| Density | 0,92 g/cm³ |
| Density cured casting compound (associated standard) | ISO 1183-1 |
| Operating temperature range max | 80 °C |
| Operating temperature range (associated standard) | IEC 60455-2 |
| Operation temperature max. | 80 °C |
| Operation temperature (associated standard) | IEC 60455-2 |
| Dielectric strength | > 25 kV/mm |
| Dielectric strength (associated standard) | IEC 60243-1 |

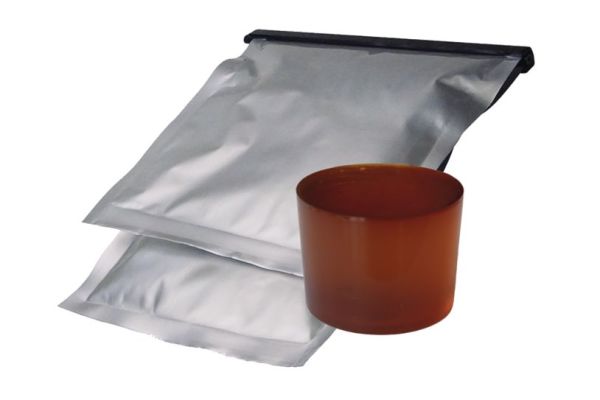

| Delivery scope | Cast resin, Packed in practical and easy-to-use two-chamber bags | ||
|---|---|---|---|
| Shelf life | 24 Month | ||
| Shelf life description | In aluminium bag | ||
| Storage temperatur min | 15 °C | ||
| Storage temperatur max | 35 °C | ||
| Country of origin | Germany | ||
| Customs tariff number | 39095090 | ||
| EAN/GTIN | 4010311196510 | ||
| Packaging type | Piece | Case | Pal. OW |
| Content quantity | 1 | 1 | 500 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 226 | 226 | 1200 |
| Width (mm) | 186 | 186 | 800 |
| Height (mm) | 32 | 32 | 1130 |
| Net weight (kg) | 0,34 | 0,34 | 170 |
| Gross weight (kg) | 0,34 | 0,34 | 99,8 |
