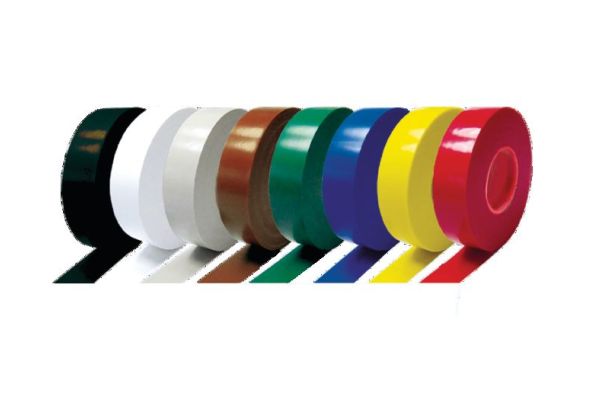

Product family | No. 103 |
---|---|
Main description | PVC insulation tape |
Sub description | self-extinguishing |
Family description | PVC insulation tape for electrical insulation, particularly weatherproof. |
Characteristics | Flame retardant, Adaptable, Extreme tear resistance, Superior ageing resistance |
Applications | Sealing, Bundling, Marking |
Test standards | ASTM D 1000 |
---|---|
Materials | PVC |
Length L | 20 m |
Width B | 19 mm |
Thickness | 0,13 mm |
Colours | green |
Adhesive strength | 1,8 N/cm |
Elongation at break | 125 % |
Tensile strength at break | 38 N/cm |
Operation temperature min. | 0 °C |
Operation temperature max. | 80 °C |
Dielectric strength | 38 kV/mm |
Delivery scope | PVC insulation tape | |||
---|---|---|---|---|
Shelf life | 12 Month | |||
Country of origin | Taiwan | |||
Customs tariff number | 39191012 | |||
EAN/GTIN | 4010311203119 | |||
Packaging type | Piece | Pack | Carton | Pal. OW |
Content quantity | 1 | 8 | 160 | 3840 |
Unit of measure | Piece | Piece | Piece | Piece |
Lenght (mm) | 0 | 66 | 350 | 1200 |
Width (mm) | 0 | 66 | 290 | 800 |
Height (mm) | 0 | 158 | 185 | 860 |
Net weight (kg) | 0,068 | 0,544 | 10,88 | 261,12 |
Gross weight (kg) | 0,068 | 0,55 | 11,5 | 385 |
