| Product family | No. 101 |
|---|---|
| Main description | PVC insulation tape |
| Sub description | self-extinguishing |
| Family description | Particularly weather-resistant PVC insulating tape with rubber-based adhesive component. |
| Characteristics | Flame retardant, Adaptable, Very good resistance to abrasion, corrosion and moisture, Superior ageing resistance, High dielectric constant, Superior mechanical properties |
| Applications | Bundling, Reinforcing, Insulating |
| Test standards | ASTM D 1000 |
|---|---|
| Materials | PVC |
| Length L | 25 m |
| Width B | 19 mm |
| Thickness | 0,15 mm |
| Colours | green |
| Adhesive strength | 1,8 N/cm |
| Elongation at break | 170 % |
| Tensile strength at break | 30 N/cm |
| Operation temperature min. | -10 °C |
| Operation temperature max. | 80 °C |
| Dielectric strength | 40 kV/mm |
| Delivery scope | PVC insulation tape | |||
|---|---|---|---|---|
| Shelf life | 12 Month | |||
| Shelf life description | In unopened original packaging at 23 °C | |||
| Country of origin | Taiwan | |||
| Customs tariff number | 39191012 | |||
| EAN/GTIN | 4010311202914 | |||
| Packaging type | Piece | Pack | Carton | Pal. OW |
| Content quantity | 1 | 10 | 120 | 4800 |
| Unit of measure | Piece | Piece | Piece | Piece |
| Lenght (mm) | 0 | 78 | 410 | 1200 |
| Width (mm) | 0 | 78 | 340 | 800 |
| Height (mm) | 0 | 194 | 220 | 1000 |
| Net weight (kg) | 0,098 | 0,98 | 11,76 | 470,4 |
| Gross weight (kg) | 0,098 | 0,985 | 12,06 | 488,6 |
- REACH conformity declaration (de)
- REACH conformity declaration (en)
- REACH conformity declaration (sp)
- REACH conformity declaration (fr)
- REACH conformity declaration (it)
- REACH conformity declaration (nl)
- REACH conformity declaration (pl)
- RoHS conformity declaration (de)
- RoHS conformity declaration (en)
- RoHS conformity declaration (sp)
- RoHS conformity declaration (fr)
- RoHS conformity declaration (it)
- RoHS conformity declaration (nl)
- RoHS conformity declaration (pl)
- Conflict minerals declaration (de)
- Conflict minerals declaration (en)
- Conflict minerals declaration (sp)
- Conflict minerals declaration (fr)
- Conflict minerals declaration (it)
- Conflict minerals declaration (nl)
- Conflict minerals declaration (pl)
- Technical data sheet (de)
- Technical data sheet (en)
- Technical data sheet (sp)
- Technical data sheet (fr)
- Technical data sheet (it)
- Technical data sheet (nl)
- Technical data sheet (pl)
- Image movie (de)
- Image movie (en)
- Image movie (fr)
- POP conformity declaration (de)
- POP conformity declaration (en)

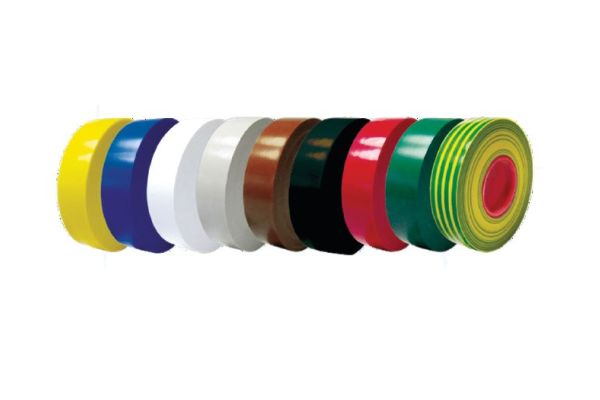

- Family image
