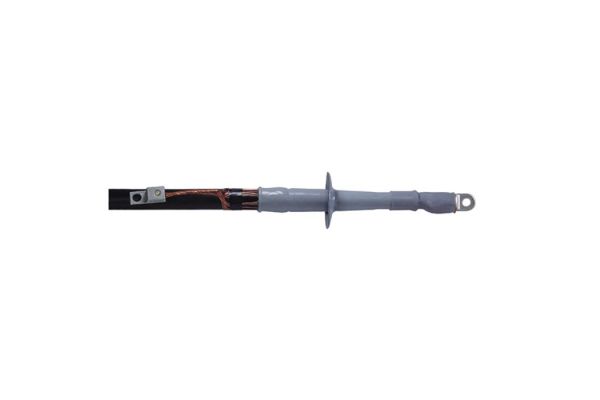

CAESK-I 24kV 120-240
1-core indoor slip-on cable termination
with screw cable lugs for 1-core polymeric cables
Art. no.
289957
| Product family | CAESK-I |
|---|---|
| Main description | 1-core indoor slip-on cable termination |
| Sub description | with screw cable lugs for 1-core polymeric cables |
| Family description | Contrax cable terminations CAESK-I are suitable for all 1-core polymeric-insulated cables (PVC, PE, XLPE, EPR) with different types of semi-conductive layers (graphitecoated, removable or strippable) and screen design (wire or tape). With screw cable lugs. |
| Notes | Can be used also for cables Um = 7,2 kV, then the minimum diameter over conductor insulation has to be checked. |
| Optional accessory | EGA earthing kit for cables with tape screen (see Connecting technology) |
| Characteristics | Silicone slip-on components for quick, safe and easy assembly, Wide cross-section range, Ready for immediate operation |
| Applications | Indoor |
| Voltage levels | U0/U (Um) 12/20 (24) kV - 12,7/22 (24) kV |
|---|---|
| Test standards | CENELEC HD 629.1 |
| Length L | 330 mm |
| Diameter over core insulation after removal of the outer conductive layer min | 23,1 mm |
| Number of sheds per phase | 1 Pieces |
| Diameter shed | 90 mm |
| Nominal cross section 24 kV min | 120 mm² |
| Nominal cross section 24 kV max | 240 mm² |
| Delivery scope | 3 One-piece slip-on silicone cable terminations with integrated stress control element, Silicone tubes, Screw cable lugs for main conductor, Sealing tape, Assembly material, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 85469090 | ||
| EAN/GTIN | 4010311149363 | ||
| Packaging type | Piece | Carton | Pal. OW |
| Content quantity | 1 | 1 | 36 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 422 | 422 | 1200 |
| Width (mm) | 262 | 262 | 800 |
| Height (mm) | 155 | 155 | 1130 |
| Net weight (kg) | 1,631 | 1,631 | 58,716 |
| Gross weight (kg) | 1,631 | 1,631 | 76,916 |
