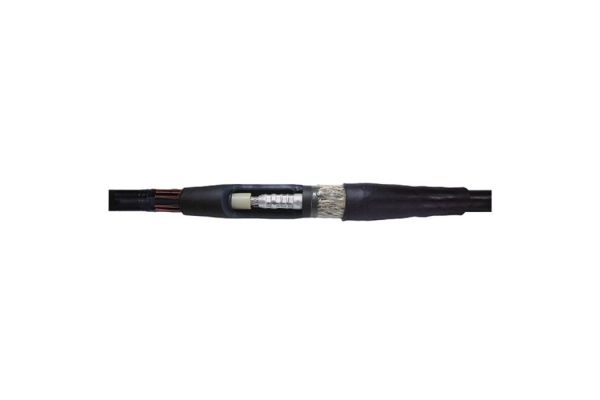

CAM-S 12kV 50-240
1-core straight-through joint
for 1-core polymeric cables
Art. no.
201386
| Product family | CAM-S |
|---|---|
| Main description | 1-core straight-through joint |
| Sub description | for 1-core polymeric cables |
| Family description | Contrax straight-through joints CAM-S are suitable for all 1-core polymericinsulated cables (PVC, PE, XLPE, EPR). They allow the connection of cables with different cross sections and conductor materials even with different cable designs concerning the semi-conductive layer (graphite-coated, removable or strippable) and screen design (wire or tape screen). Suitable for compression connectors. |
| Notes | Can be used also for cables Um = 7,2 kV, then the minimum diameter over conductor insulation has to be checked. |
| Optional accessory | Compression connectors (see Connecting technology) |
| Characteristics | Reliable stress control due to flexible silicone stress control elements, Wide conductor and cross-section range, Quick, safe and easy assembly, Ready for immediate operation |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts, Ductwork |
| Voltage levels | U0/U (Um) 6/10 (12) kV - 12,7/22 (24) kV |
|---|---|
| Voltage levels | U0/U (Um) 6/10 (12) kV - 6,35/11 (12) kV |
| Test standards | CENELEC HD 629.1 |
| Diameter connector max | 36 mm |
| Length Connector max | 160 mm |
| Length L | 700 m |
| Diameter over core insulation after removal of the outer conductive layer min | 14,7 mm |
| Nominal cross section 24 kV min | 50 mm² |
| Nominal cross section 24 kV max | 240 mm² |
| Delivery scope | Thick wall heat shrinkable outer tube with hot melt adhesive, Silicone field control elements, Silicone joint body with integrated semi-conductive layer (individually tested), Copper braid tube, Pressure springs, Semiconductor tape, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 39269097 | ||
| EAN/GTIN | 4010311057026 | ||
| Packaging type | Piece | Carton | Pal. EU |
| Content quantity | 1 | 1 | 25 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 730 | 730 | 1200 |
| Width (mm) | 231 | 231 | 800 |
| Height (mm) | 188 | 188 | 1130 |
| Net weight (kg) | 1,957 | 1,957 | 48,925 |
| Gross weight (kg) | 1,957 | 1,957 | 77,925 |
