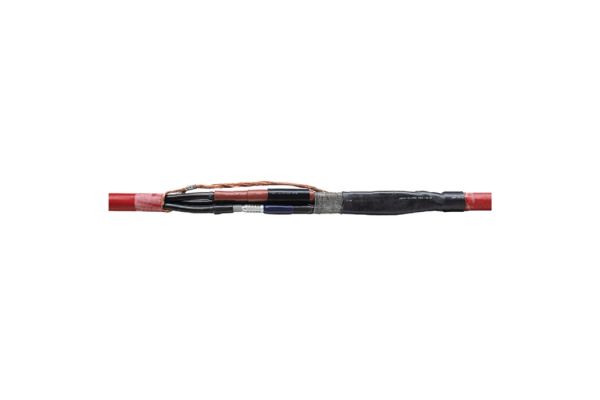

CHM3 36kV 150-300
3-core straight-through joint
for 3-core polymeric cables
Art. no.
194307
| Product family | CHM3 |
|---|---|
| Main description | 3-core straight-through joint |
| Sub description | for 3-core polymeric cables |
| Family description | Hybrid straight-through joints CHM3 are suitable for all 3-core polymeric-insulated cables (PVC, PE, XLPE, EPR). They allow the connection of cables with different cross sections and conductor materials even with different cable designs concerning the semi-conductive layer (graphite-coated, removable or strippable) and screen design (copper wire or tape screen). Suitable for compression connectors. |
| Notes | Can be used also for cables Um = 7,2 kV, then the minimum diameter over conductor insulation has to be checked., Straight-through joints with larger cross-section available on request. |
| Optional accessory | Compression connectors (see Connecting technology) |
| Characteristics | Reliable stress control due to flexible silicone stress control elements, For both copper and aluminium conductors, Wide conductor and cross-section range, Quick, safe and easy assembly, Ready for immediate operation |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts, Ductwork |
| Voltage levels | U0/U (Um) 18/30 (36) kV - 19/33 (36) kV |
|---|---|
| Test standards | CENELEC HD 629.1 |
| Diameter Connector 36kV max | 38 mm |
| Length Connector 36kV max | 200 mm |
| Length L | 1200 mm |
| Diameter over core insulation after removal of the outer conductive layer min | 27,3 mm |
| Nominal cross section 36 kV min | 150 mm² |
| Nominal cross section 36 kV max | 300 mm² |
| Delivery scope | Thick wall heat shrinkable insulation tubes, Thick wall heat shrinkable outer tube with hot melt adhesive, Silicone field control elements, Copper braid tube, Field control filling tape (blue), Pressure springs, Assembly material, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 39269097 | ||
| EAN/GTIN | 4010311047492 | ||
| Packaging type | Piece | Carton | Pal. OW |
| Content quantity | 1 | 1 | 12 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 865 | 865 | 1200 |
| Width (mm) | 369 | 369 | 800 |
| Height (mm) | 170 | 170 | 1130 |
| Net weight (kg) | 6,654 | 6,654 | 79,848 |
| Gross weight (kg) | 6,654 | 6,654 | 98,048 |
