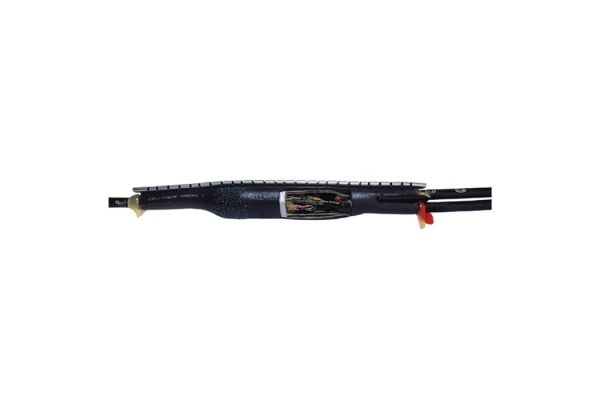

VASMI 2 SRT
Heat shrinkable straight-through joint
with temperature colour indicator for telecommunication cables
Art. no.
145566
| Product family | VASMI |
|---|---|
| Main description | Heat shrinkable straight-through joint |
| Sub description | with temperature colour indicator for telecommunication cables |
| Family description | For connecting or branching telecommunication cables insulated with PVC or PE (e.g. A-2YF(L)2Y, A-02YSF(L)2Y, A-PWE2Y, A-PM, A-PM2Y, A-PMbc). Suitable for wire connectors. |
| Optional accessory | Assembly kit MSFA (required for each branch), Wire connectors AVS (see Connecting technology) |
| Characteristics | Compact dimensions, With temperature colour indicator, Suitable for cut and uncut cables, Removable (for repairs or switch-over), Resistant to chemical agents, Resistant to alkaline earth elements, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Waterproof and moisture-resistant |
| Applications | Indoor areas (also with high humidity levels), Outdoor, Underground, Water, Installation ducts, Ductwork |
| Length L1 | 380 mm |
|---|---|
| Diameter D1 over protective liner | 68 mm |
| Diameter cable min | 15 mm |
| Diameter cable max | 55 mm |
| Telecommunication cable spliced with wire connector Number of wire pairs 0,4 mm max | 100 Pieces |
| Telecommunication cable spliced with wire connector Number of wire pairs 0,6 mm max | 50 Pieces |
| Telecommunication cable spliced with wire connector Number of wire pairs 0,8 mm max | 30 Pieces |
| Telecommunication cable spliced with conductor connecting blocks Number of wire pairs 0,4 mm max | 150 Pieces |
| Telecommunication cable spliced with conductor connecting blocks Number of wire pairs 0,6 mm max | 100 Pieces |
| Telecommunication cable spliced with conductor connecting blocks Number of wire pairs 0,8 mm max | 50 Pieces |
| Delivery scope | Heat shrinkable sleeve, Flexible locking bar, Protective liner, Drying agent, Shield continuity wire with clamps, Fire protection film, PVC insulation tape, Cleaning tissue, Emery cloth, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 39173900 | ||
| EAN/GTIN | 4010311017242 | ||
| Packaging type | Piece | Bag1 | Carton |
| Content quantity | 1 | 1 | 40 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 416 | 416 | 585 |
| Width (mm) | 309 | 309 | 390 |
| Height (mm) | 57 | 57 | 490 |
| Net weight (kg) | 0,391 | 0,391 | 15,64 |
| Gross weight (kg) | 0,391 | 0,391 | 15,94 |
