SMH4 70-150 Pb-RF

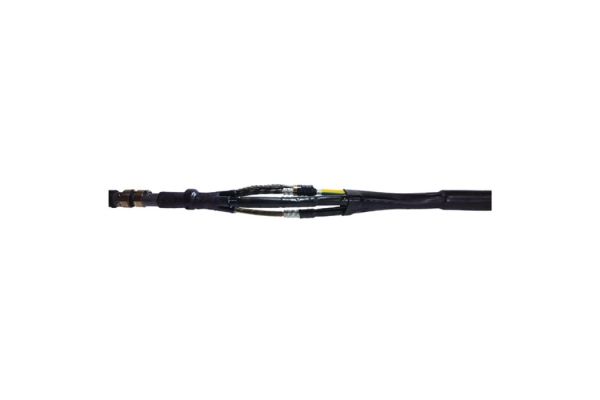

Heat shrinkable transition joint
with solderless earthing wire connection
Art. no.
145354
| Product family | SMH4…Pb-RF |
|---|---|
| Main description | Heat shrinkable transition joint |
| Sub description | with solderless earthing wire connection |
| Family description | Universally suitable for transition from mass-impregnated paper cables to polymeric-insulated cables made of PVC, PE and XLPE, e.g. N(A)KBA on N(A)YY. Suitable for compression connectors on aluminium or copper cables. |
| Notes | Use only connectors with separator. |
| Optional accessory | Compression connectors (see Connecting technology) |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Resistant to alkaline earth elements, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Transversely waterproof, High electrical insulating values, High mechanical strength |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts, Ductwork |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Length L1 | 1000 mm |
| Nominal cross section Polymeric cable unarmoured per conductor 4x min | 70 mm² |
| Nominal cross section Polymeric cable unarmoured per conductor 4x max | 150 mm² |
| Nominal cross section Mass-impregnated paper cable per conductor 4x min | 70 mm² |
| Nominal cross section Mass-impregnated paper cable per conductor 4x max | 150 mm² |
| Delivery scope | Outer sleeve, Inner sleeves, Core insulating tubes, Earthing wire, Pressure spring, Spreader cap, Cleaning tissue, Emery cloth, Assembly instructions | |
|---|---|---|
| Shelf life description | Unlimited shelf life | |
| Country of origin | Germany | |
| Customs tariff number | 39173900 | |
| EAN/GTIN | 4010311026237 | |
| Packaging type | Piece | Bag1 |
| Content quantity | 1 | 1 |
| Unit of measure | Piece | Piece |
| Lenght (mm) | 1091 | 1091 |
| Width (mm) | 210 | 210 |
| Height (mm) | 135 | 135 |
| Net weight (kg) | 1,104 | 1,104 |
| Gross weight (kg) | 1,104 | 1,104 |
