| Product family | V, VI, VS |
|---|---|
| Main description | Screw connector Al-Cu |
| Sub description | for low voltage |

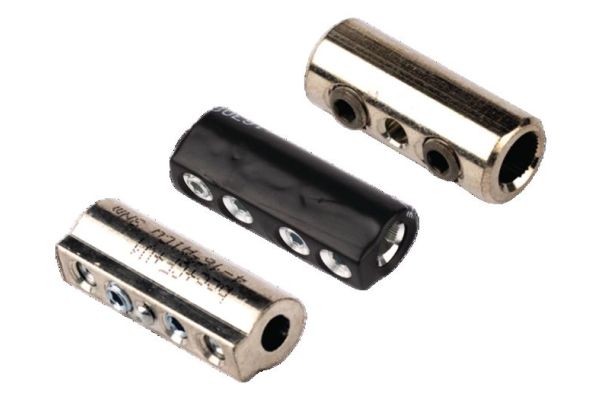

| Family description | Screw connector for aluminium and copper conductors with grub screws. |
| Applications | For connecting conductors RM/SM (class 2), RE/SE (class 1) according to DIN EN/IEC 60228 (VDE 0295) |
| Materials | Galvanic tinned |
|---|---|
| Selection Note | V = Blank |
| Nominal cross section RE min | 1,5 mm² |
| Nominal cross section RE max | 6 mm² |
| Number of bolts | 2 Pieces |
| Delivery scope | Screw connector | |
|---|---|---|
| Country of origin | Czech Republic | |
| Customs tariff number | 85369010 | |
| EAN/GTIN | 4010311067674 | |
| Packaging type | Piece | Case |
| Content quantity | 1 | 100 |
| Unit of measure | Piece | Piece |
| Lenght (mm) | 26 | 115 |
| Width (mm) | 4 | 8 |
| Height (mm) | 5 | 55 |
| Net weight (kg) | 0,006 | 0,6 |
| Gross weight (kg) | 0,006 | 0,9 |
