| Product family | V, VI, VS |
|---|---|
| Main description | Screw connector Al-Cu |
| Sub description | for low voltage |
| Family description | Screw connector for aluminium and copper conductors with grub screws. |
| Applications | For connecting conductors RM/SM (class 2), RE/SE (class 1) according to DIN EN/IEC 60228 (VDE 0295) |
| Materials | Galvanic tinned |
|---|---|
| Selection Note | V = Blank |
| Nominal cross section RE min | 16 mm² |
| Nominal cross section RE max | 50 mm² |
| Number of bolts | 4 Pieces |
| Delivery scope | Screw connector | ||
|---|---|---|---|
| Country of origin | Poland | ||
| Customs tariff number | 85369010 | ||
| EAN/GTIN | 4010311056807 | ||
| Packaging type | Piece | Bag1 | Carton |
| Content quantity | 1 | 1 | 50 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 64 | 64 | 195 |
| Width (mm) | 23 | 23 | 150 |
| Height (mm) | 15 | 15 | 70 |
| Net weight (kg) | 0,049 | 0,049 | 2,45 |
| Gross weight (kg) | 0,049 | 0,049 | 2,75 |
- REACH conformity declaration (de)
- REACH conformity declaration (en)
- REACH conformity declaration (sp)
- REACH conformity declaration (fr)
- REACH conformity declaration (it)
- REACH conformity declaration (nl)
- REACH conformity declaration (pl)
- RoHS conformity declaration (de)
- RoHS conformity declaration (en)
- RoHS conformity declaration (sp)
- RoHS conformity declaration (fr)
- RoHS conformity declaration (it)
- RoHS conformity declaration (nl)
- RoHS conformity declaration (pl)
- Conflict minerals declaration (de)
- Conflict minerals declaration (en)
- Conflict minerals declaration (sp)
- Conflict minerals declaration (fr)
- Conflict minerals declaration (it)
- Conflict minerals declaration (nl)
- Conflict minerals declaration (pl)
- Technical data sheet (de)
- Technical data sheet (en)
- Technical data sheet (sp)
- Technical data sheet (fr)
- Technical data sheet (it)
- Technical data sheet (nl)
- Technical data sheet (pl)
- Image movie (de)
- Image movie (en)
- Image movie (fr)
- POP conformity declaration (de)
- POP conformity declaration (en)

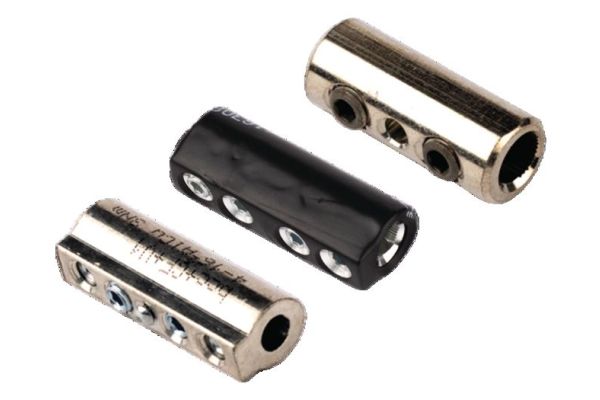

- Family image
