| Product family | V, VI, VS |
|---|---|

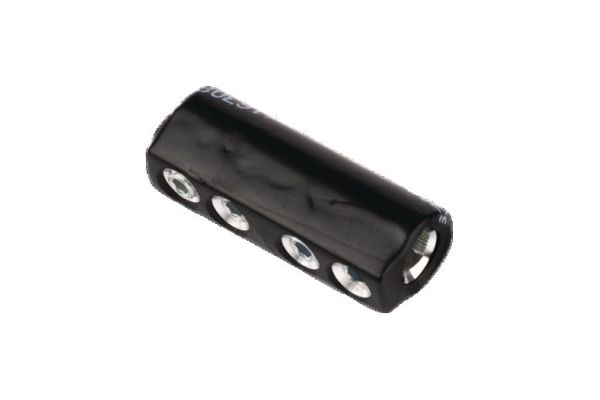

| Main description | Screw connector Al-Cu |
| Sub description | for low voltage |
| Family description | Screw connector for aluminium and copper conductors with grub screws. |
| Applications | For connecting conductors RM/SM (class 2), RE/SE (class 1) according to DIN EN/IEC 60228 (VDE 0295) |
| Materials | Galvanic tinned |
|---|---|
| Selection Note | VI = Insulated |
| Nominal cross section RE min | 16 mm² |
| Nominal cross section RE max | 50 mm² |
| Number of bolts | 4 Pieces |
| Delivery scope | Screw connector | ||
|---|---|---|---|
| Country of origin | Germany | ||
| Customs tariff number | 85369010 | ||
| EAN/GTIN | 4010311062075 | ||
| Packaging type | Piece | Bag1 | Carton |
| Content quantity | 1 | 1 | 50 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 65 | 65 | 266 |
| Width (mm) | 22 | 22 | 186 |
| Height (mm) | 18 | 18 | 57 |
| Net weight (kg) | 0,053 | 0,053 | 2,65 |
| Gross weight (kg) | 0,053 | 0,053 | 2,95 |
